Description
The Electric Gate Opener provides effortless and eco-friendly control for your gates, ensuring smooth operation with gentle start and stop features that extend the lifespan of your gate. Safety is a priority, as it automatically stops or reverses when detecting any obstruction. The system includes an emergency release key for power failures and a programmable auto-close feature for added convenience. Supplied with remote controls, it allows seamless and secure access. Lockmaster products may be branded as "UL Tech," but the product and functionality remain the same. Suitable for steel, wood, and vinyl gates in panel, tube, or chain-link styles.

Features

• Handles gates weighing up to 1200kg and 6m long

• Gentle start and stop features

• Midway mode allows the gate to pause at a predetermined midway point

• Automatically stops or reverses when obstruction is detected

• Emergency release key for power failures

• Programmable auto-close feature (adjustable 0–99 seconds)

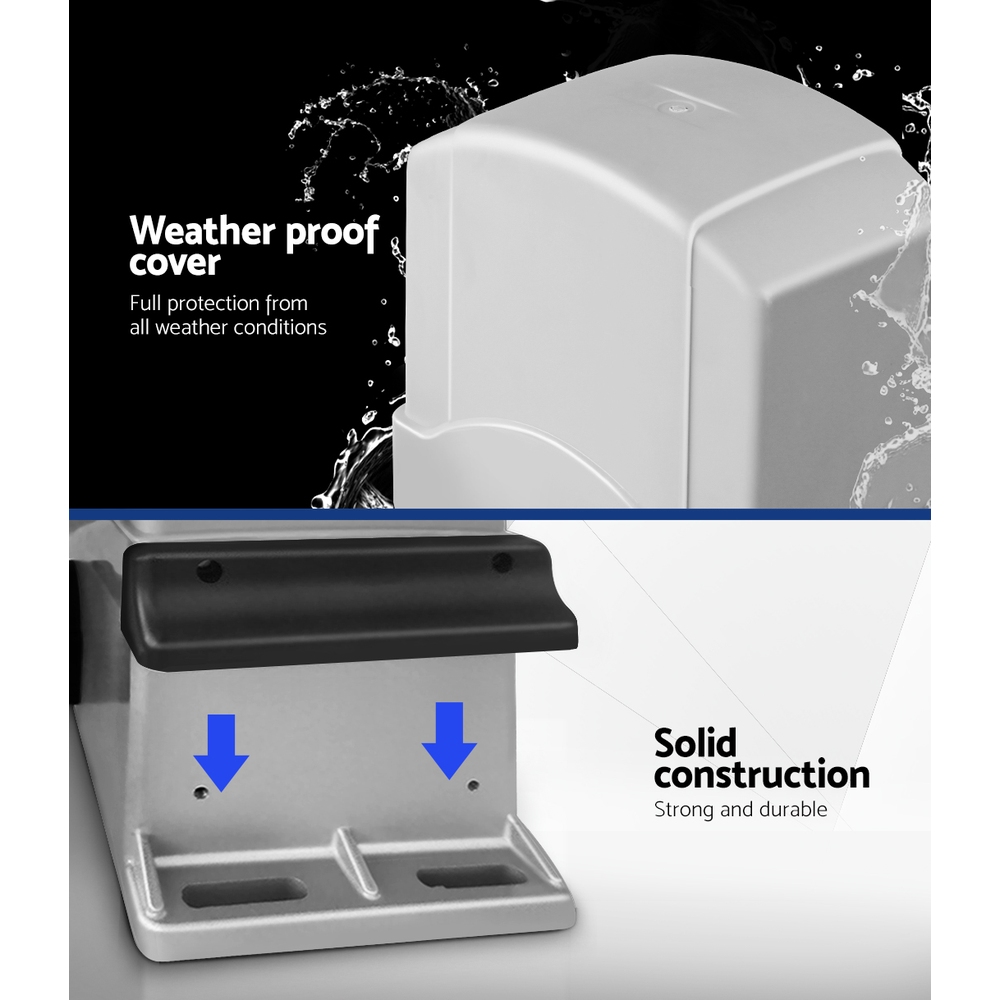

• Weather and dust-resistant control box

• Comes with 2 programmable remote controls

• Illuminated keypad

• Versatile for steel, wood, and vinyl gates in panel, tube, or chain-link styles

Specifications

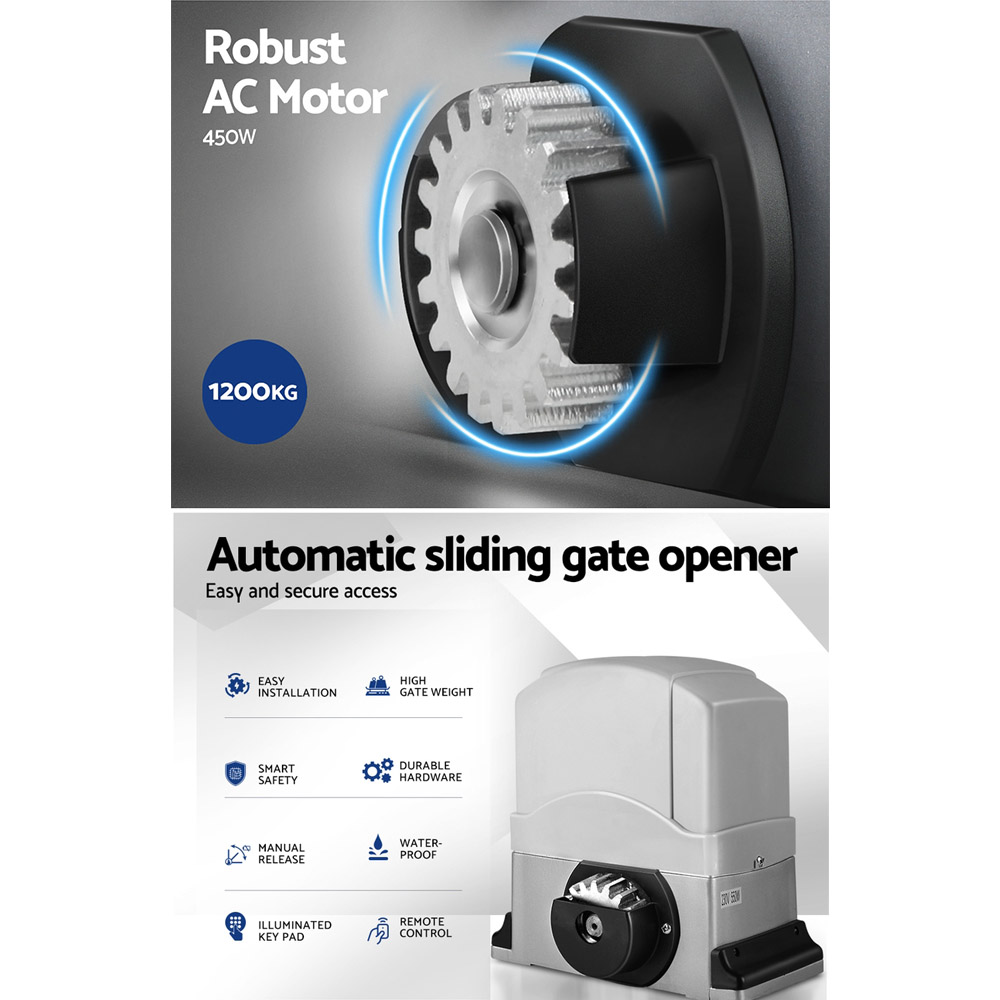

• Motor voltage: 230V AC

• Motor power: 450W

• Max. gate weight: 1200kg

• Max. gate length: 6m

• Gate moving speed: 12m/min

• Operating temperature: -22℃ ~ +55℃

• Protection class: IP44

• Remote control: 2

• Remote operating range: 30m

• Remote control battery: 12V 27A Alkaline zinc manganese battery

• Control box dimensions: 29cm x 29cm x 15cm

• Assembly required: Yes

• Number of packages: 6

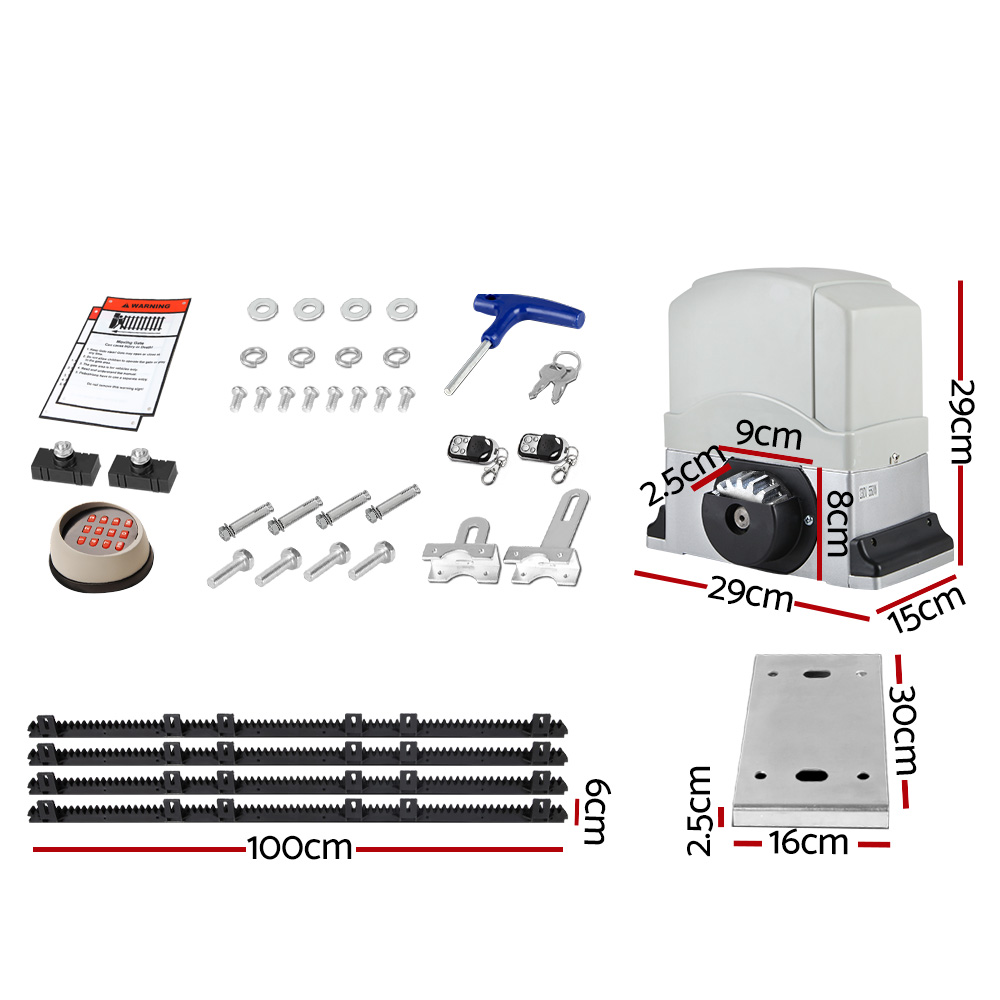

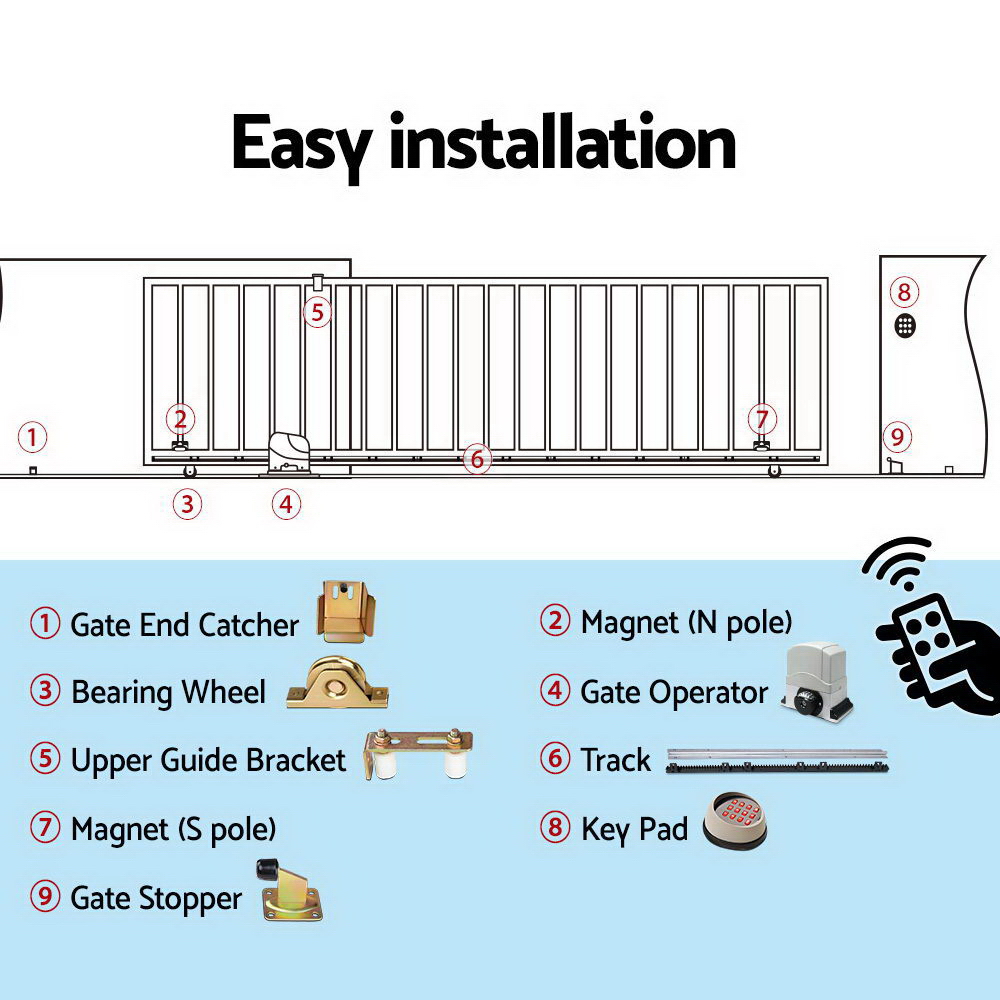

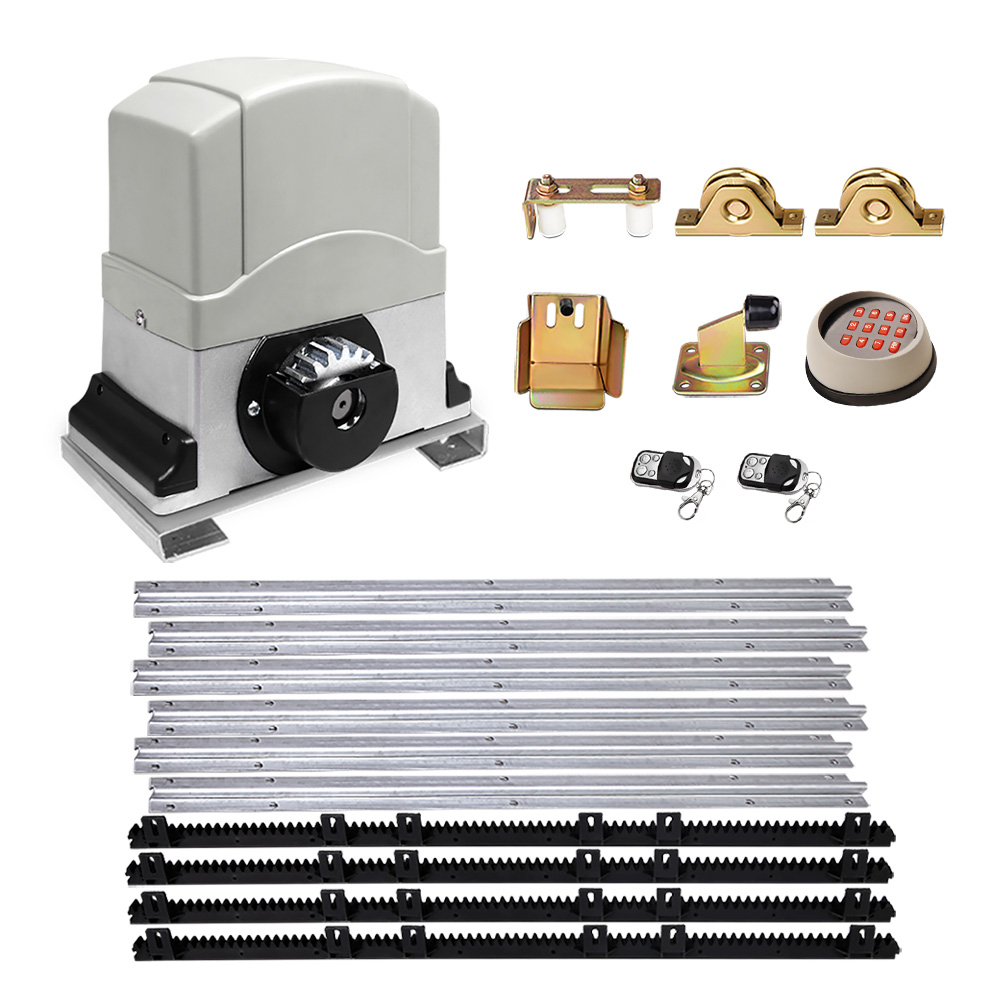

Package Content

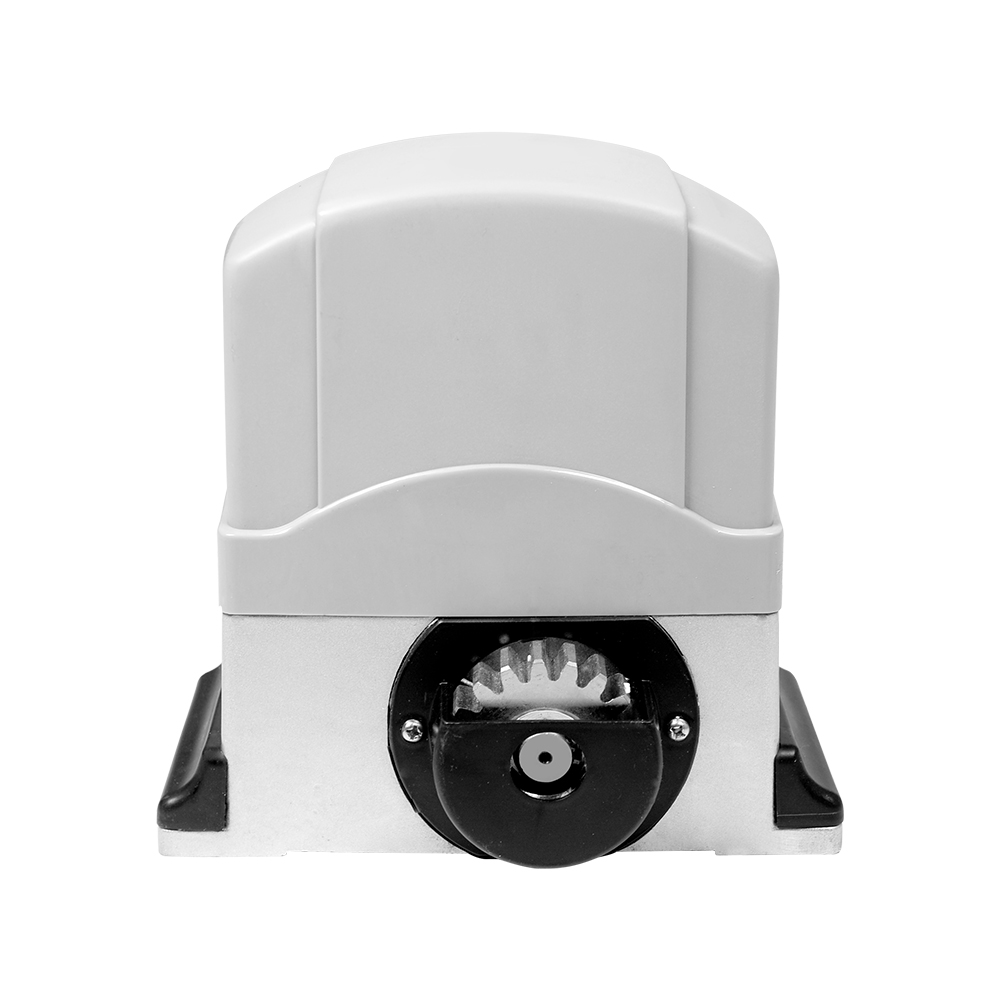

• 450W Motor x1

• 1M Rail x6

• Remote Control x2

• Standard Accessories x1 set

• User Manual x1

• Gate Stopper x1

• 1M U Groove Galvanised Ground Track x6

• Upper Guide Bracket with 2 Nylon Rollers x1

• 90mm U Groove Bearing Wheels x2

• Gate End Stop/Catcher (93mm Opening) x1

• Wireless Keypad x1
