Description
Introducing the Solar-Powered Gate Opener, designed for effortless and eco-friendly gate automation. This advanced system delivers smooth operation with gentle start and stop functions that help extend your gate’s lifespan. Built with safety as a priority, it automatically stops or reverses when an obstruction is detected for added peace of mind. An emergency release key ensures access during power outages, while the programmable auto-close feature provides everyday convenience. Included remote controls enable seamless and secure access. It is recommended that this model be connected to mains power with the 10W or 20W solar kit acting as backup, while the 40W solar kit can function as the main power source. Lockmaster products may also be supplied under the brand name “UL Tech,” which is the same product.

Features

• Solar-powered gate opener

• Supports gates up to 600kg and 6m long

• Gentle start and stop functionality

• Midway mode allows gate to pause at a preset position

• Automatically stops or reverses when obstruction is detected

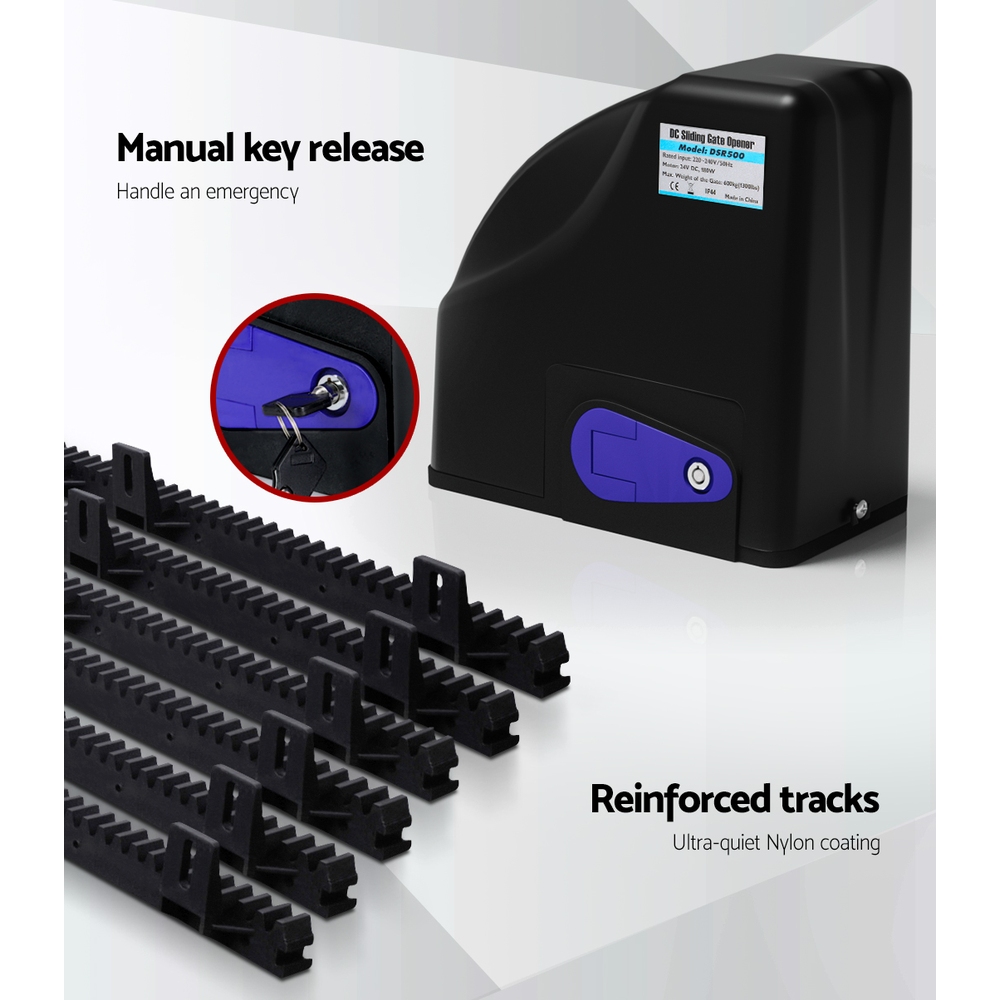

• Emergency release key for power failure

• Programmable auto-close feature (adjustable 0–99 seconds)

• Weather and dust-resistant control box

• Includes 3 programmable remote controls

• Suitable for steel, wood, and vinyl gates in panel, tube, and chain-link styles

Specifications

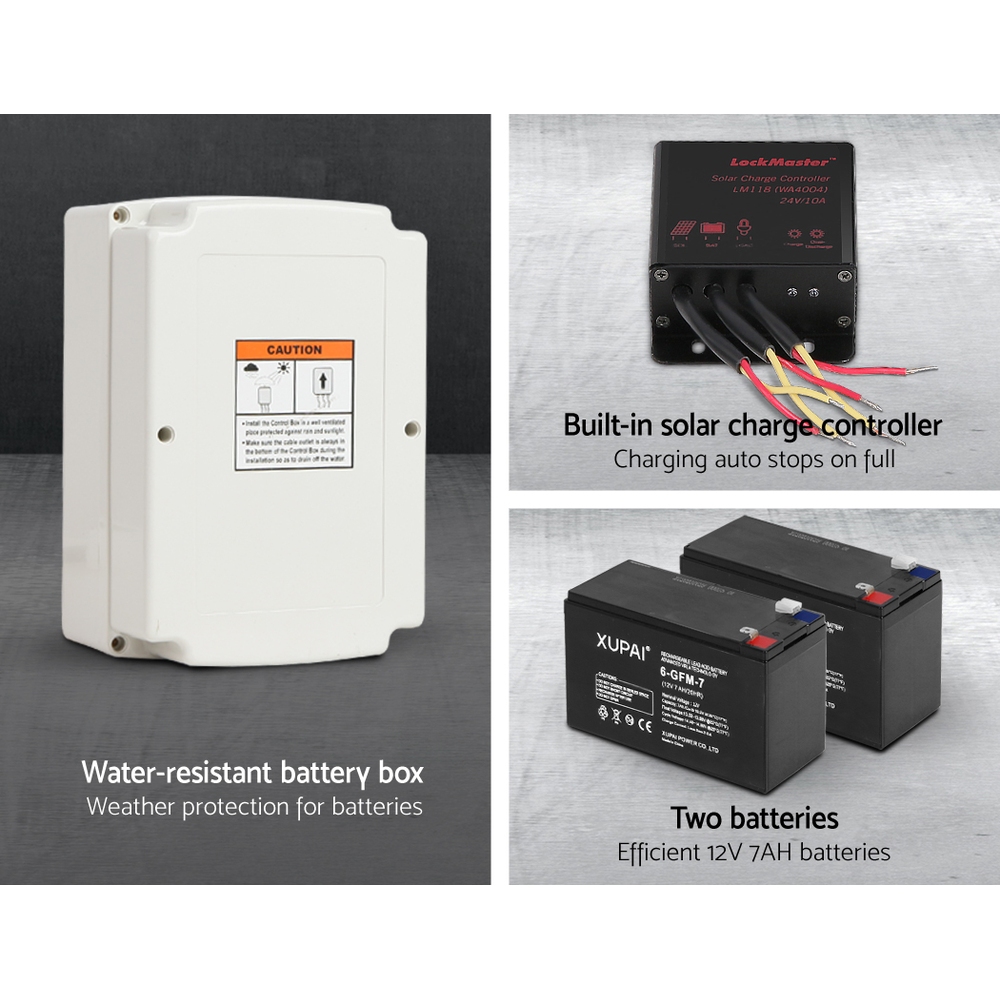

• Power source options:

  • Solar-powered with 2 spare batteries (12V 7Ah)

  • Solar-powered with 2 spare batteries (12V 12Ah)

  • Solar-powered with 2 spare batteries (12V 20Ah)

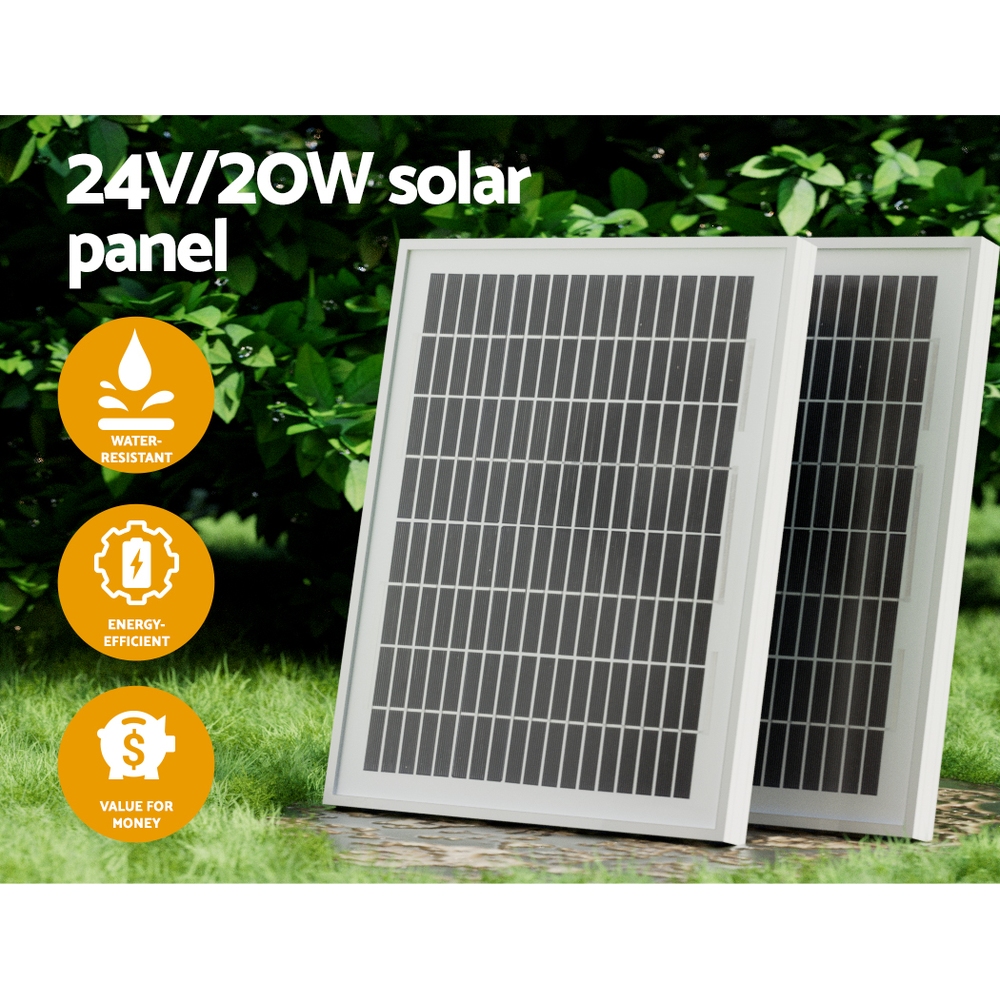

• Solar panel options:

  • 24V / 10W

  • 24V / 20W

  • 24V / 40W

• Motor voltage: 24V DC

• Motor power: 180W

• Maximum gate weight: 600kg

• Maximum gate length: 6m

• Gate moving speed: 12.6m/min

• Operating temperature: -22°C to +55°C

• Protection class: IP44

• Remote controls: 3

• Remote operating range: 30m

• Remote control battery: Alkaline zinc manganese battery 12V 27A

• Control box dimensions: 29cm x 29cm x 15cm

• Assembly required: Yes

• Number of packages: 5

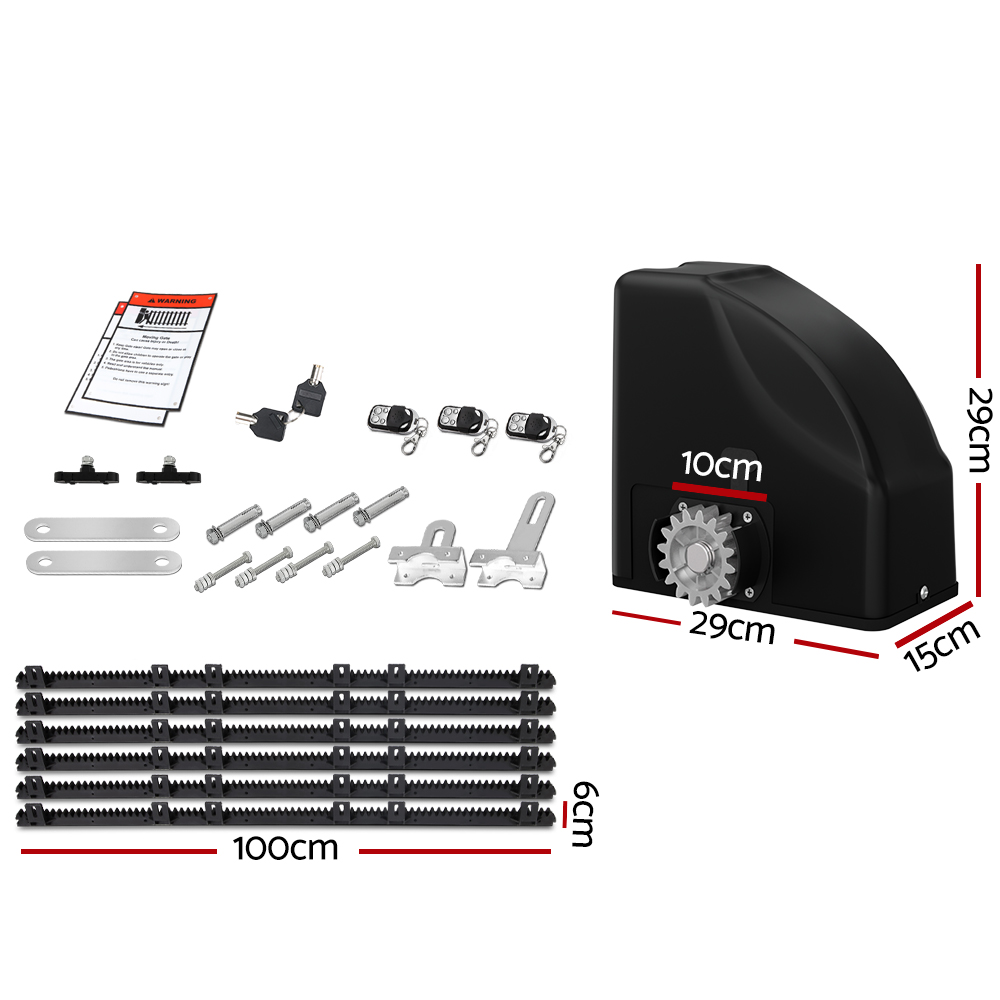

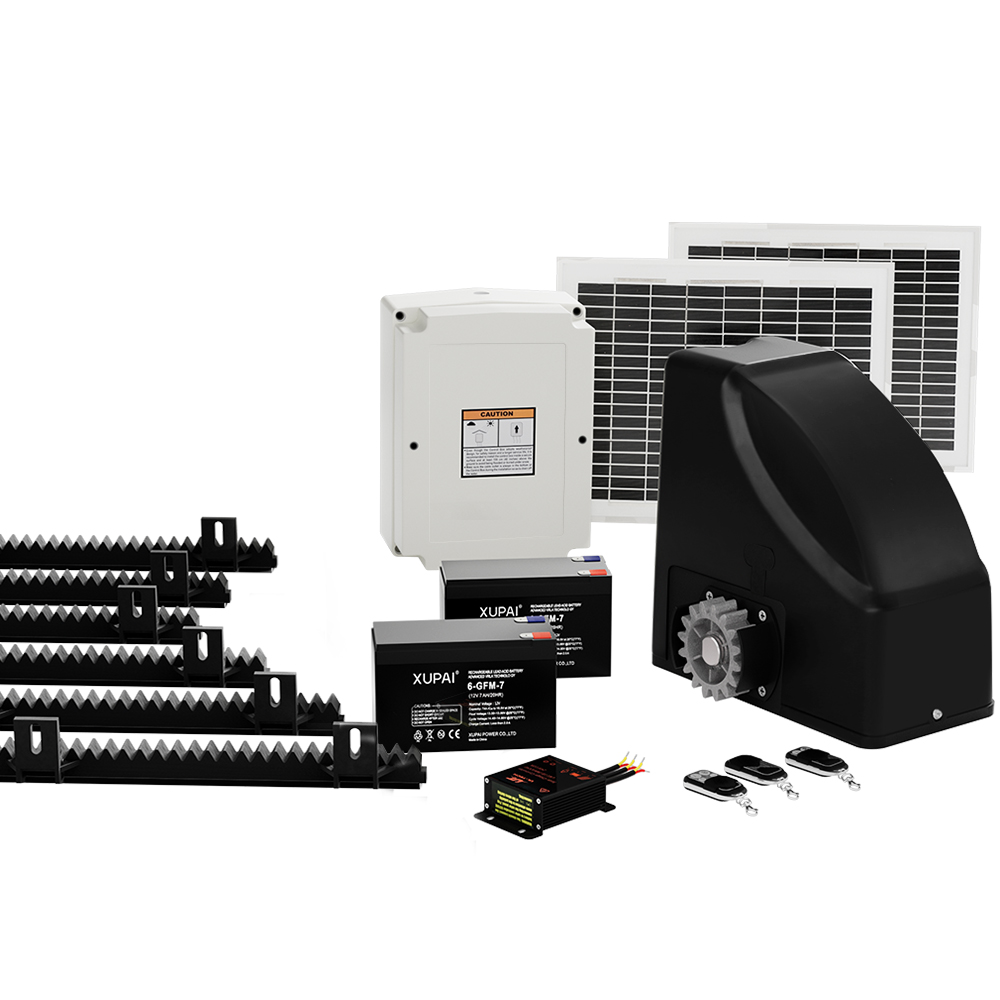

Package Content

• Gate Opener x1

• 1M Rail x6

• Remote Control x3

• Solar Panel x1 (10W / 20W / 40W depending on model)

• Installation Accessories x1 set

• User Manual x1 set
