Description

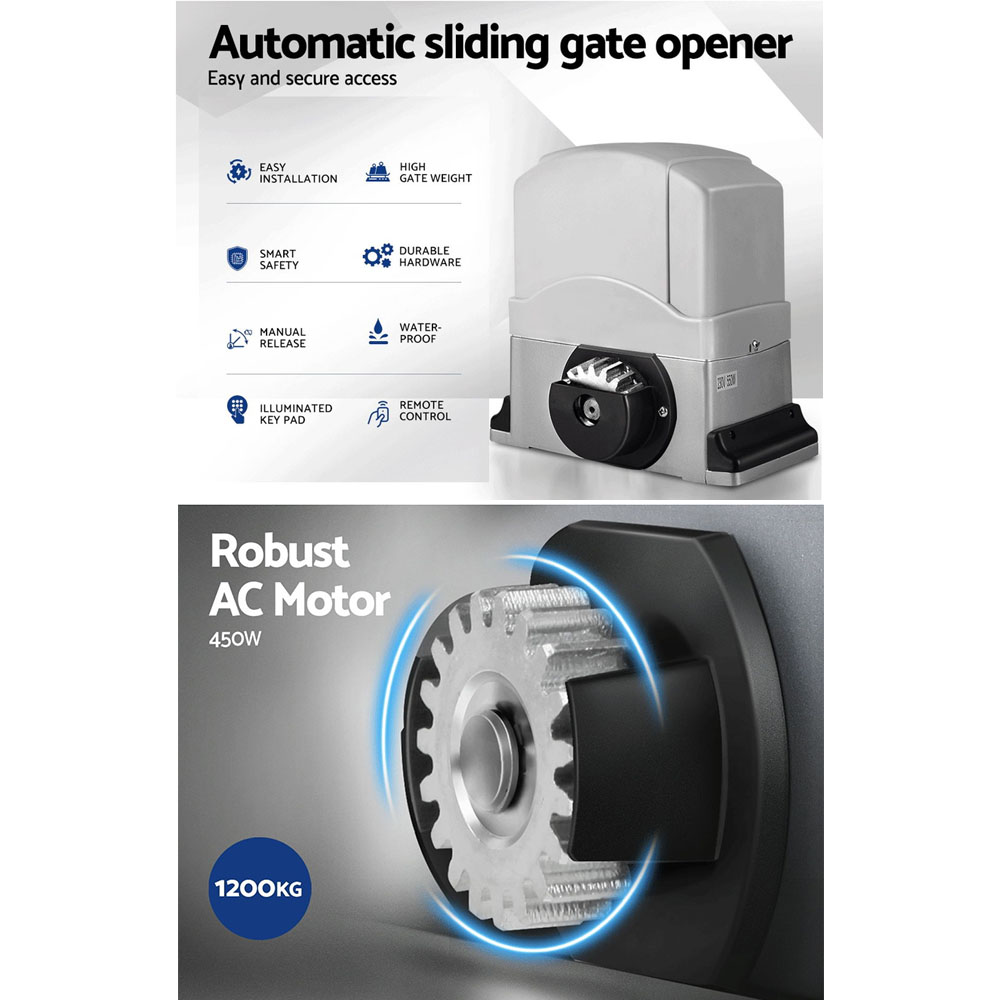

The Electric Gate Opener is designed to provide effortless, secure, and reliable gate control for your home or business. Equipped with a 450W 230V AC motor, it can handle gates up to 1200kg with smooth start and stop operation. Safety is ensured with automatic stop or reverse if an obstruction is detected, and an emergency release key allows access during power failures. The system includes a programmable auto-close feature, versatile midway/pedestrian modes, and a weather- and dust-resistant control box. Nylon-reinforced rails and high-quality construction guarantee durability. Lockmaster products may be branded as "UL Tech," but the product quality and functionality remain the same.

Features

• Handles gates weighing up to 1200kg and 4–6m long

• Gentle start and stop features

• Midway mode allows gate to pause at a predetermined point

• Automatically stops or reverses when obstruction is detected

• Emergency release key for power failures

• Programmable auto-close feature (adjustable 0–99s)

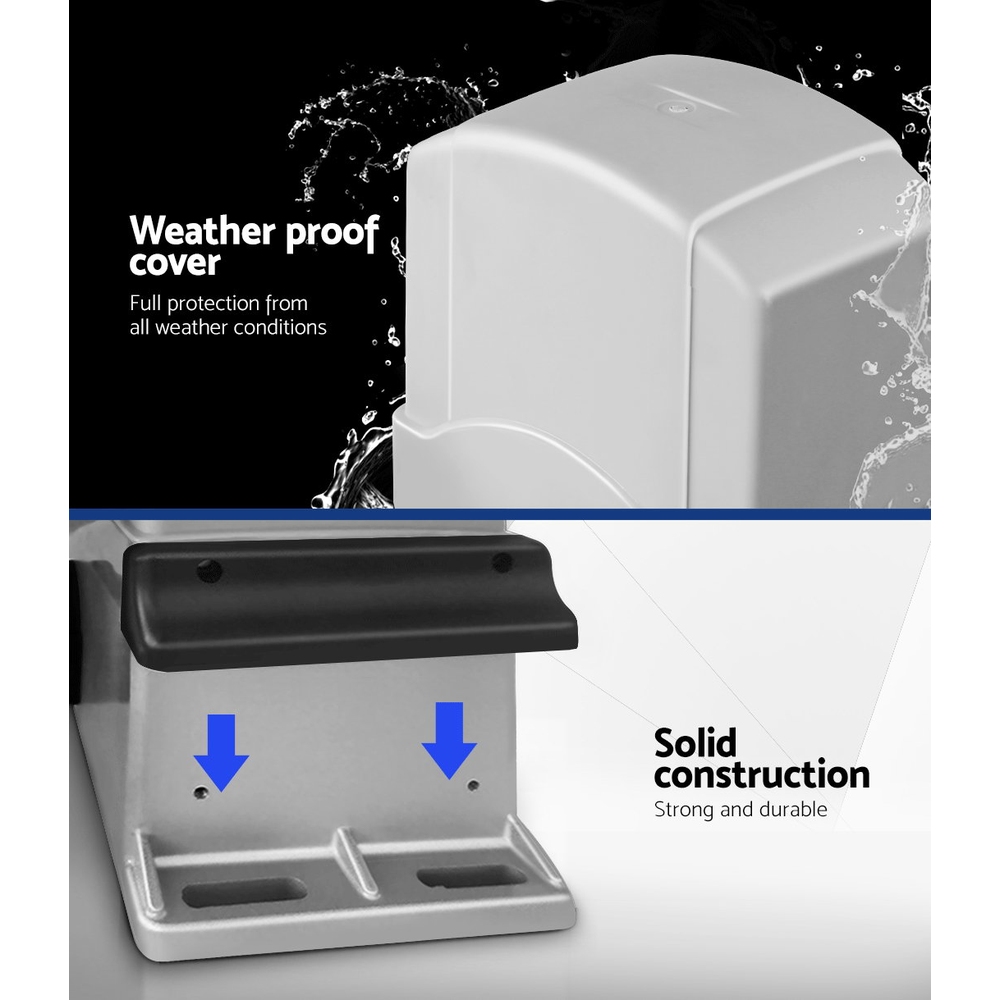

• Weather and dust-resistant control box

• Comes with 2–3 programmable remote controls

• Versatile for steel, wood, vinyl gates in panel, tube, or chain-link styles

• Quick selection for open/close direction

• Built-in motor running limitation

• Reliable rolling code technology for remote control

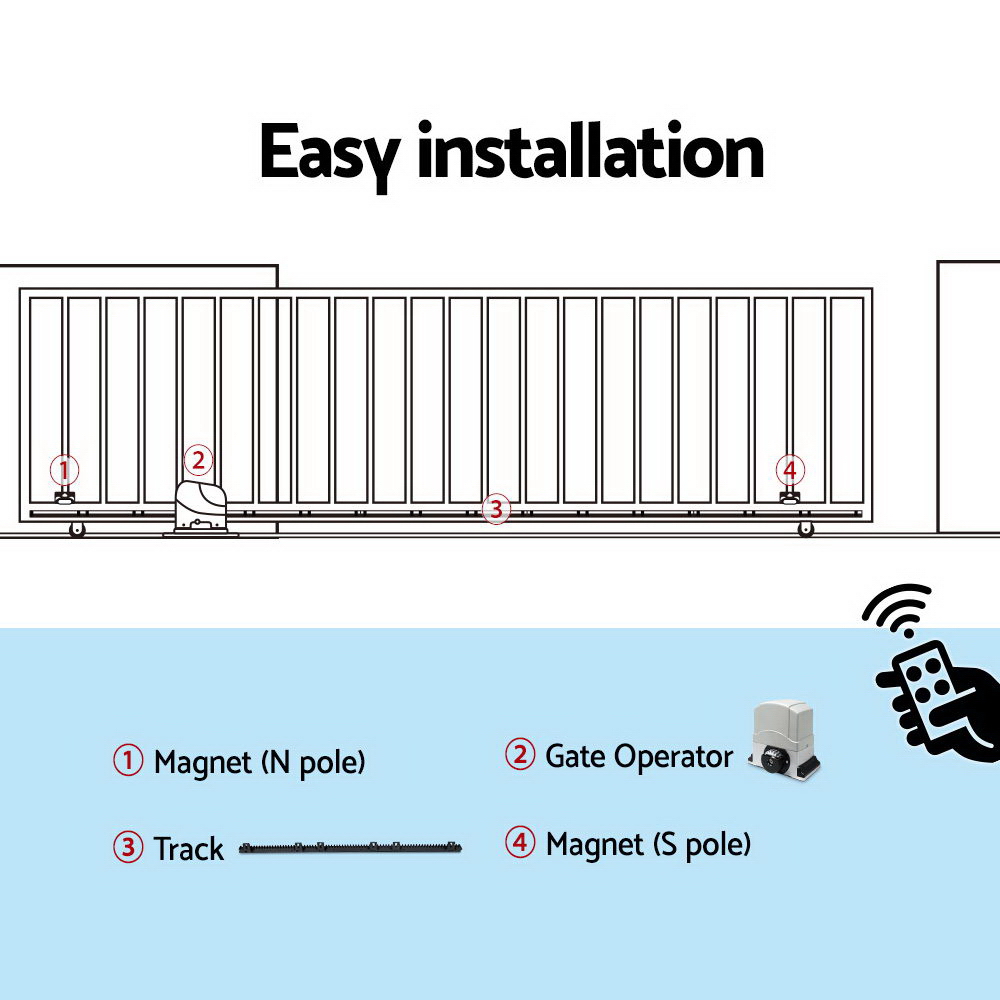

• Reliable electromagnetism limit for easy adjustment

Specifications

• Motor voltage: 230V AC

• Motor power: 450W

• Max. gate weight: 1200kg

• Max. gate length: 4–6m

• Gate moving speed: 12m/min

• Operating temperature: -22℃ ~ +55℃

• Protection class: IP44

• Remote operating range: 30m

• Remote control battery: 12V 27A Alkaline zinc manganese battery

• Control box dimensions: 29cm x 29cm x 15cm

• Rail material: Nylon-reinforced

• Drive wheel height: 99mm

• Assembly required: Yes

• Number of packages: 3–4

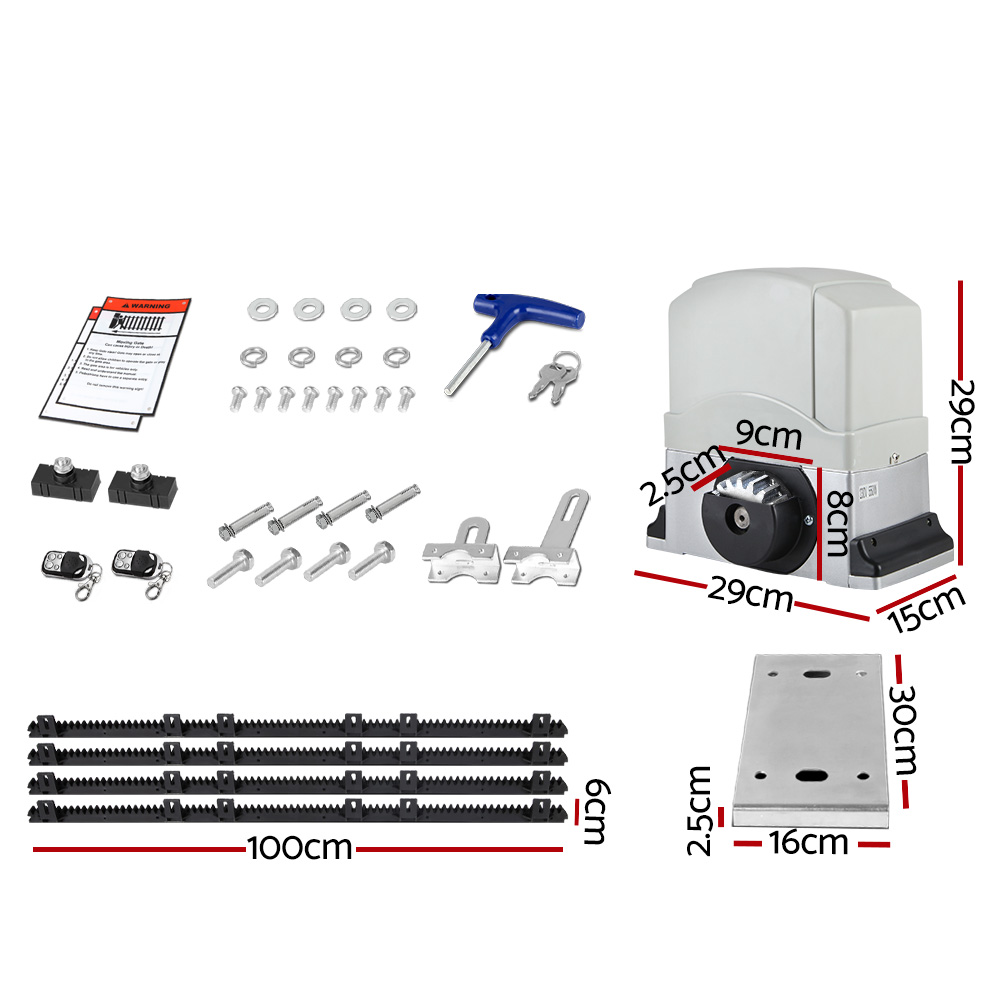

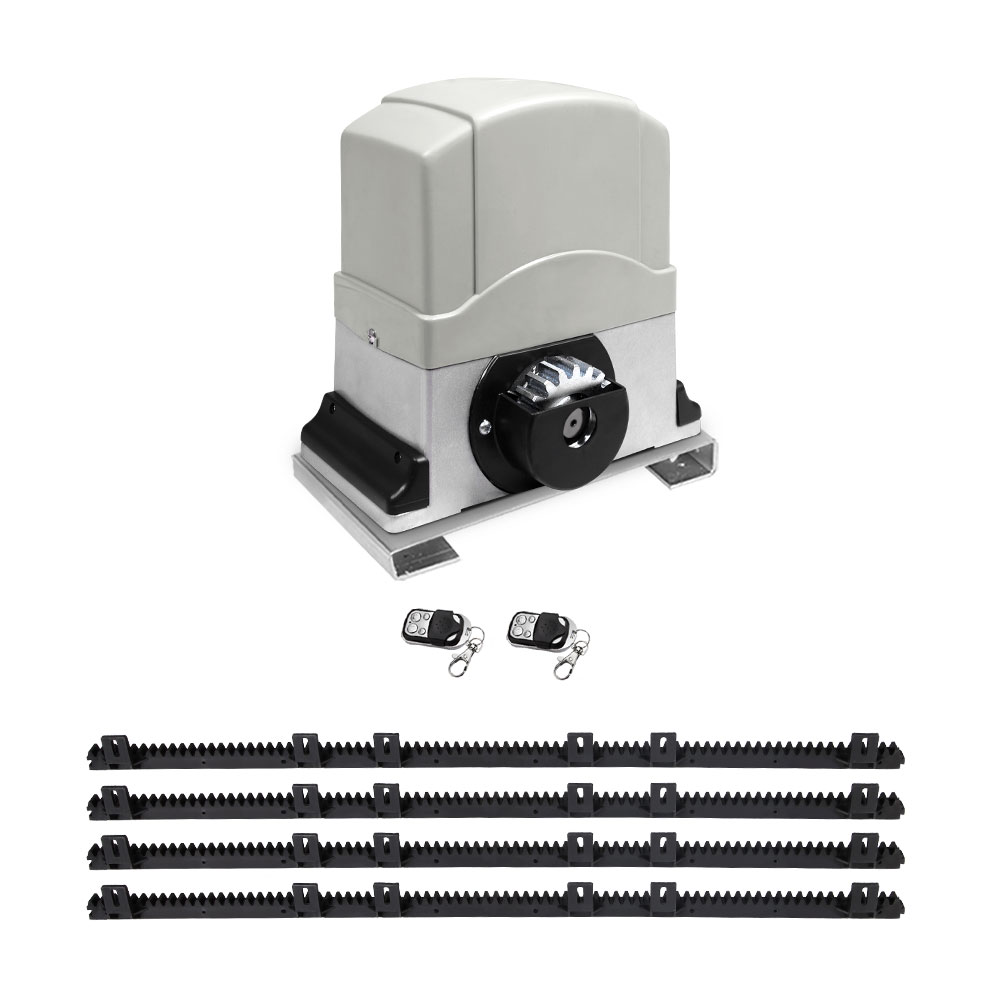

Package Content

• Gate Opener Motor x1

• 1M Rail x4/6

• Remote Control x2–3

• Standard Accessories x1 set

• User Manual x1
