Description
The Solar-Powered Gate Opener provides eco-friendly and effortless gate control, combining advanced technology with convenience and safety. Gentle start and stop features enhance the lifespan of your gate, while automatic obstruction detection ensures the gate stops or reverses if blocked. It includes an emergency release key for power failures and a programmable auto-close feature adjustable from 0–99 seconds. The system comes with three remote controls for secure access and supports steel, wood, and vinyl gates in panel, tube, or chain-link styles. It is recommended to connect the gate opener to the mains with a 10W or 20W solar kit as backup or a 40W solar kit as main power. Lockmaster products may appear under the brand name "UL Tech," which is the same product.

Features

• Solar-powered gate opener

• Handles gates up to 600kg and 6m long

• Gentle start and stop operation

• Midway mode allows gate to pause at a predetermined point

• Automatically stops or reverses when obstruction is detected

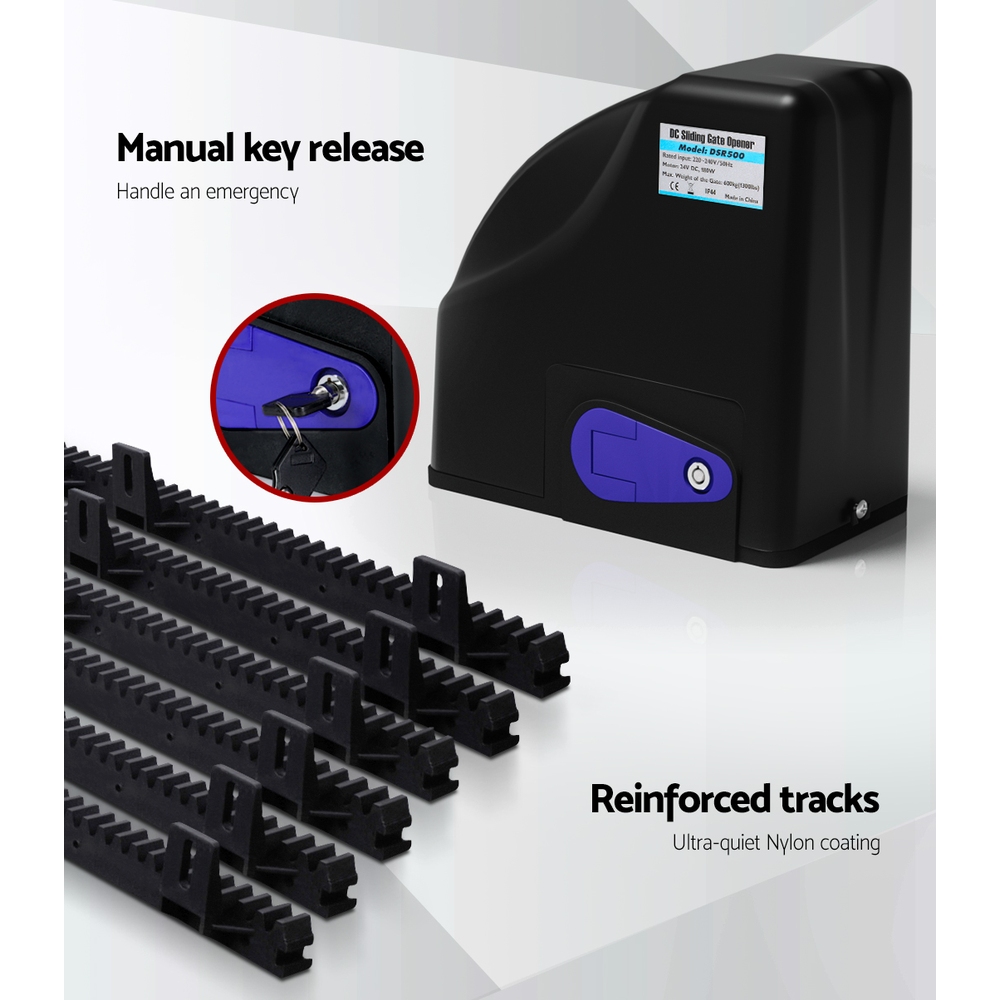

• Emergency release key for power failures

• Programmable auto-close feature (adjustable between 0–99 seconds)

• Weather and dust resistant control box

• Comes with 3 programmable remote controls

• Versatile for steel, wood, and vinyl gates in panel, tube, or chain-link styles

Specifications

• Power source: Solar-powered with 2 spare batteries (12V 20Ah)

• Motor voltage: 24V DC

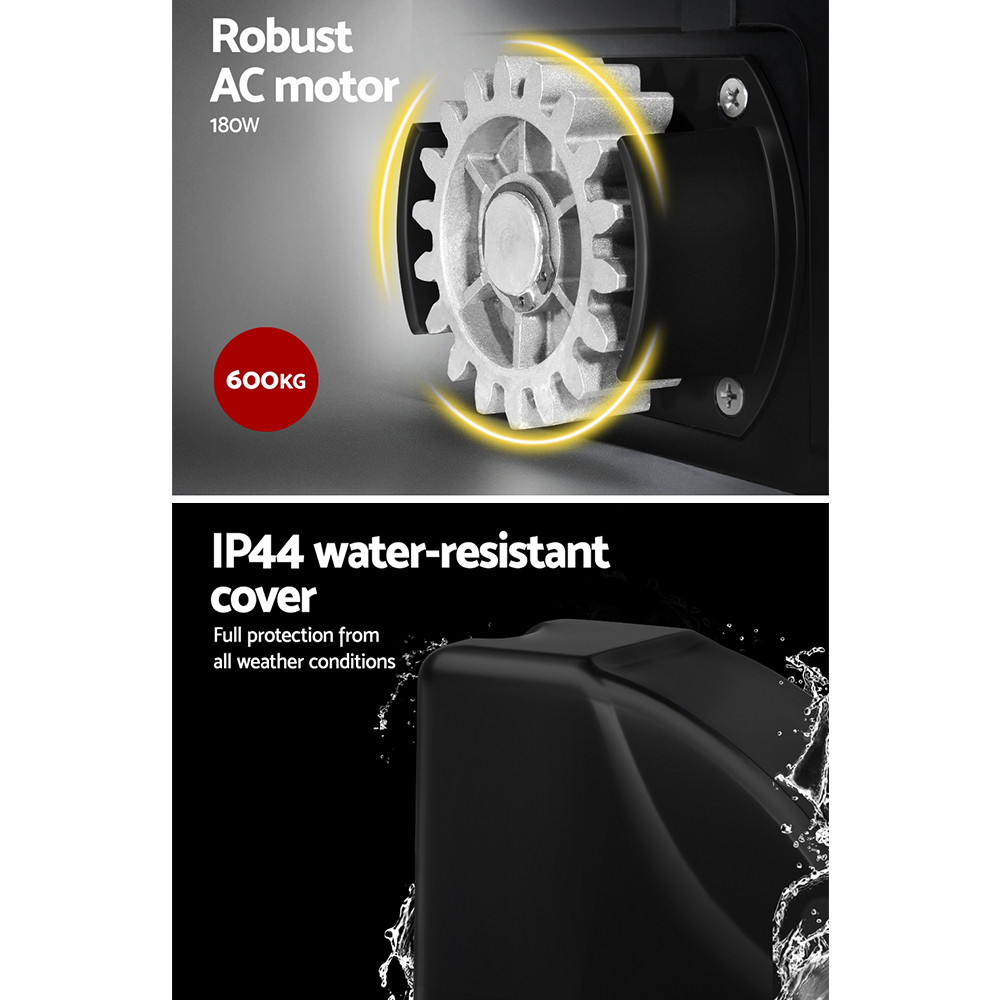

• Motor power: 180W

• Maximum gate weight: 600kg

• Maximum gate length: 6m

• Gate moving speed: 12.6m/min

• Operating temperature: -22℃ to +55℃

• Protection class: IP44

• Remote control: 3

• Remote operating range: 30m

• Remote control battery: Alkaline zinc manganese battery 12V 27A

• Control box dimensions: 29 x 29 x 15cm

• Assembly required: Yes

• Number of packages: 4 or 5 depending on package

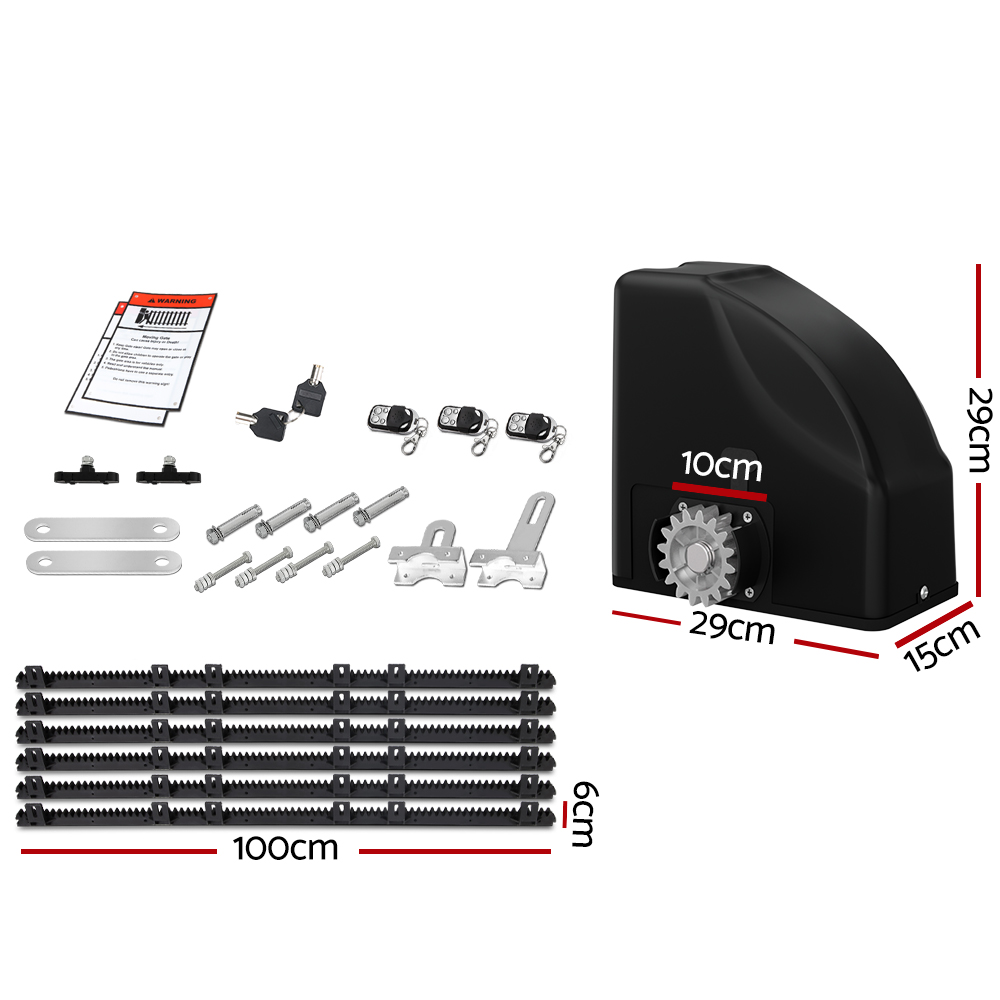

Package Content

• Gate Opener x1

• 1M Rail x4 or x6 depending on package

• Remote Control x3

• Installation Accessories x1 set

• User Manual x1 set
