Description
Protect your property with the UL-Tech 1080P CCTV Security Camera System, a powerful home and business surveillance solution designed for reliable 24/7 monitoring. Featuring crisp 1080P HD resolution for both live and recorded footage, the system captures clear details such as facial features, license plates, and clothing patterns—far superior to standard 720P systems. Advanced motion detection supports up to 192 detection areas per screen and activates recording only when movement is detected. Infrared night vision provides visibility up to 20 metres in darkness, while the weatherproof IP66 design allows dependable indoor and outdoor installation. A massive 4TB hard drive enables long-duration recording and secure video storage, with data protection even during power outages. The system supports record, playback, and search functions, and connects effortlessly to the internet via P2P technology. With remote access through a free mobile app, you can view live feeds, capture images, record video, and receive instant email alerts wherever you are. Designed for convenience and security, this system delivers complete peace of mind whether you are home or away.

Features
• Full HD 1080P resolution
• Advanced motion detection with up to 192 detection areas per screen
• Infrared night vision up to 20m
• Weatherproof IP66 all-weather design
• Indoor and outdoor use
• 5-in-1 DVR compatibility
• Supports AHD, TVI, CVI, CVBS and IP cameras
• Support P2P technology for easy internet connection
• Remote access via smartphone, tablet or computer
• View, capture and record through free mobile app
• Instant email alarm notifications
• HDMI and VGA outputs
• Record, playback and smart search modes
• Customizable motion detection sensitivity
• Built-in IR-cut filter for day and night clarity
• USB backup and storage support
• Cloud system support for remote access
• Data protection during power outage
• Simultaneous multi-channel live viewing on smartphone
• Easy installation
• Bonus 4TB hard drive and USB mouse included
• 1 Year warranty

Specifications (Choose Your System)

4 Channel System
• DVR channels: 4 Channel 1080N 5-in-1 DVR
• Simultaneous mobile live view: 4 channels
• Preview ability: 4 × 1080N
• Encode ability: 4 × 1080N @12fps
• Decode ability: 4 × 1080N @12fps
• Multi-mode input:
 • Analog: 4 × 1080N
 • Hybrid: 4 × 1080N (analog) + 4 × 960P (network)
 • Network only: 4 × 720P; 4 × 1080P; 8 × 720P; 8 × 1080P; 1 × 1080P
• Video input: 4ch BNC
• Local playback: 4ch

8 Channel System
• DVR channels: 8 Channel 1080N 5-in-1 DVR
• Simultaneous mobile live view: 8 channels
• Preview ability: 8 × 1080N
• Encode ability: 8 × 1080N @12fps
• Decode ability: 8 × 1080N @12fps
• Multi-mode input:
 • Analog: 8 × 1080N
 • Hybrid: 4 × 1080N (analog) + 4 × 960P (network)
 • Network only: 16 × 720P; 9 × 1080P; 16 × 960P; 4 × 5MP
• Video input: 8ch BNC
• Local playback: 8ch
• EESS Number: E2021062827R

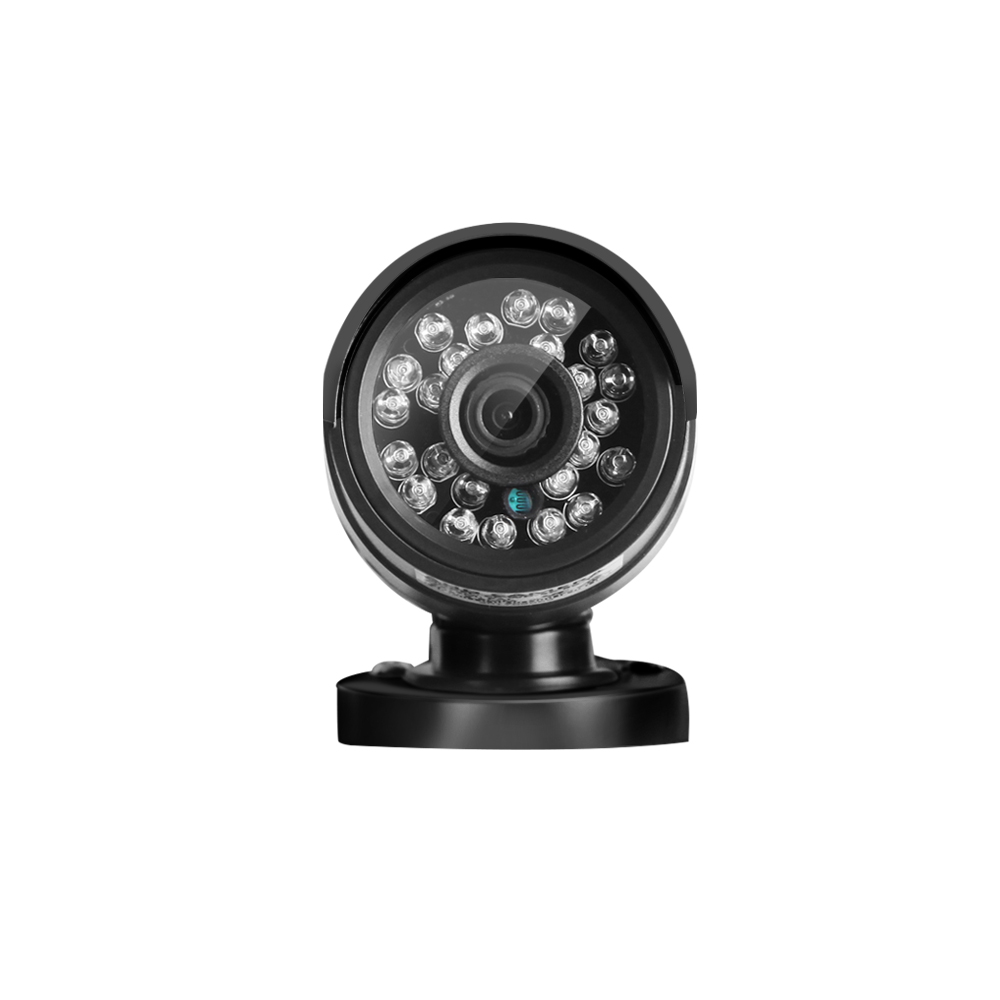

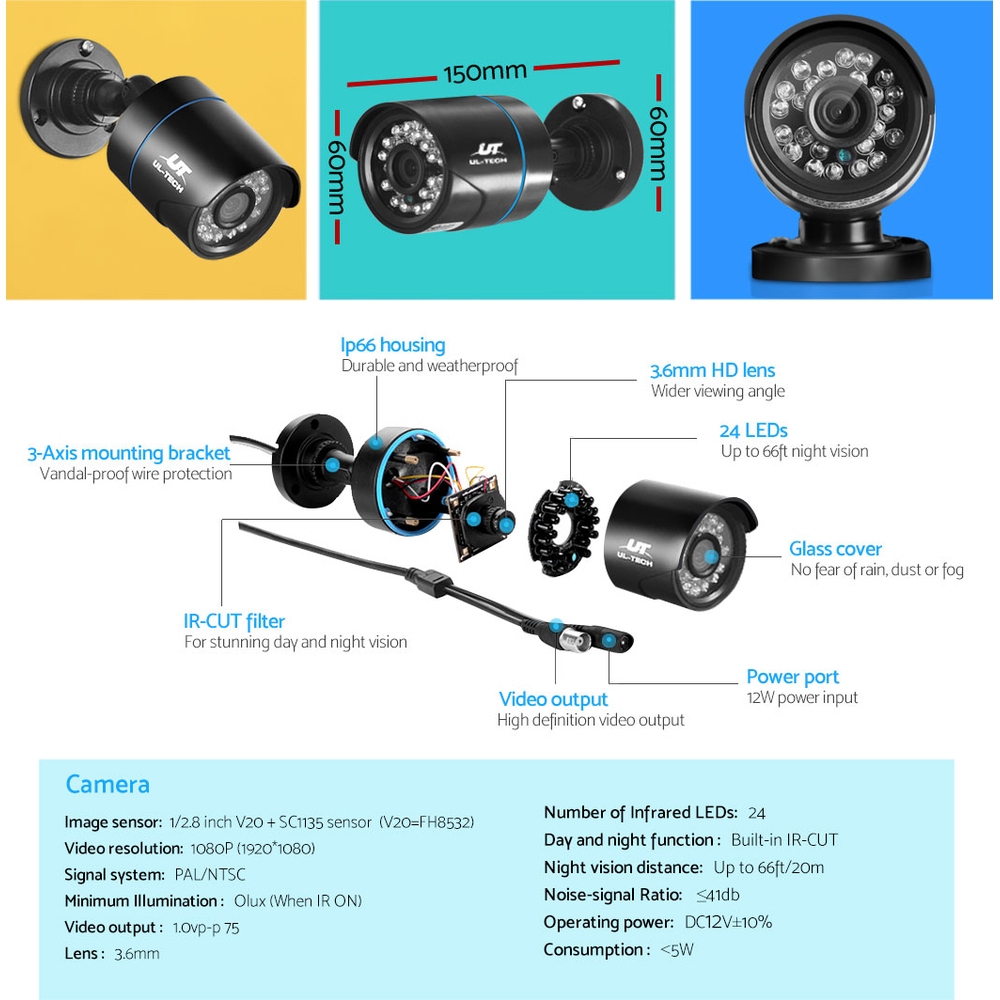

Camera
• Image sensor: 1/2.8 inch V20+ SC135 sensor
• Video resolution: 1080P (1920 × 1080)
• Signal system: PAL / NTSC
• Minimum illumination: 0 lux (IR on)
• Video output: 1.0Vp-p 75Ω
• Lens: 3.6mm
• Infrared LEDs: 24
• Day & night function: Built-in IR-CUT
• Night vision distance: Up to 66ft / 20m
• Noise-signal ratio: ≤41dB
• Operating power: DC12V ±10%
• Power consumption: <5W

Video
• Codec: H.264
• Monitor quality: VGA, HDMI HD output
• Motion detection: 192 (16 × 12) areas per screen with adjustable sensitivity

Recording & Playback
• Record mode: Manual > Alarm > Motion Detection > Timing
• Search mode: Time, calendar, event, channel

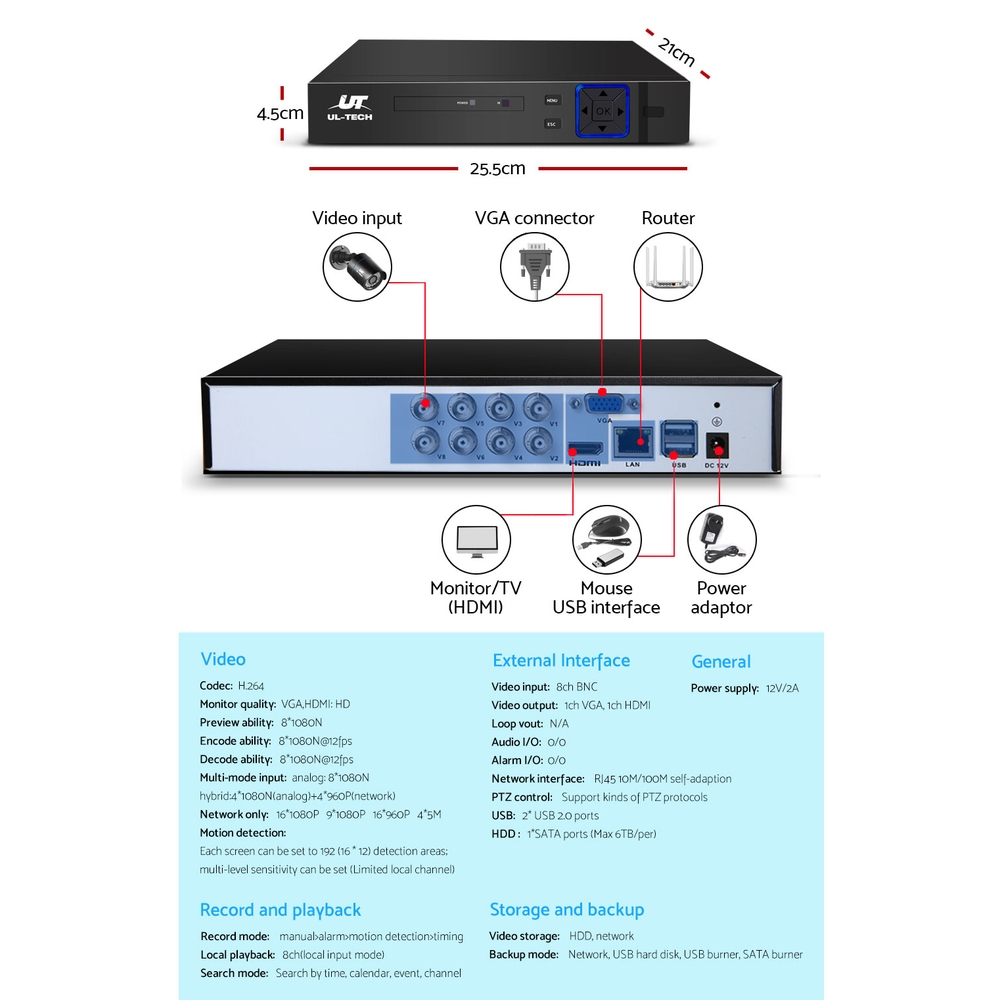

External Interface
• Video output: 1ch VGA, 1ch HDMI
• Audio I/O: 0/0
• Alarm I/O: 0/0
• Network interface: RJ45 10M / 100M self-adaptive
• PTZ control: Supports multiple PTZ protocols
• USB ports: 2 × USB 2.0
• HDD interface: 1 × SATA (Max 6TB per drive)

Storage & Backup
• Video storage: HDD, network
• Backup mode: Network, USB hard disk, USB burner, SATA burner

General
• Power supply: 12V / 2A
• Assembly required: Yes
• Number of packages: 2

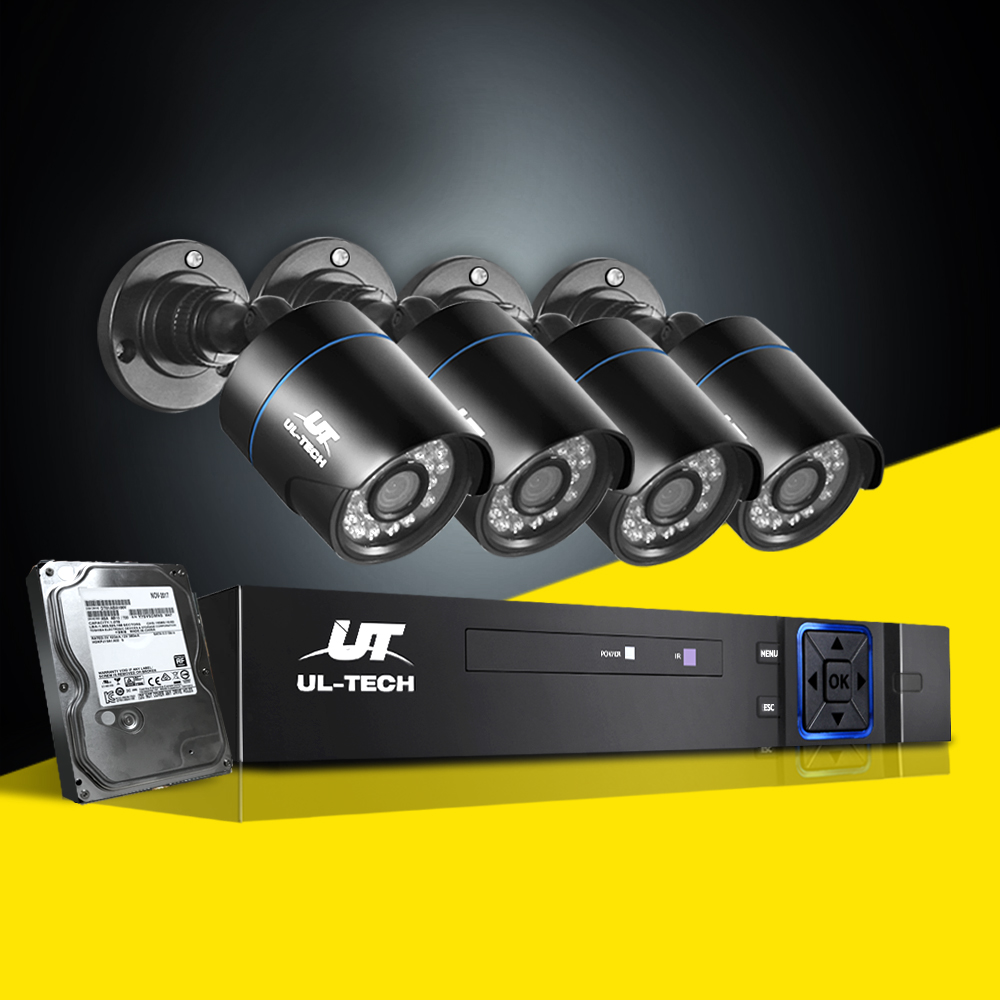

Package Content

4 Channel System
• UL-Tech 1080P Camera × 4
• 1080P 4CH DVR × 1

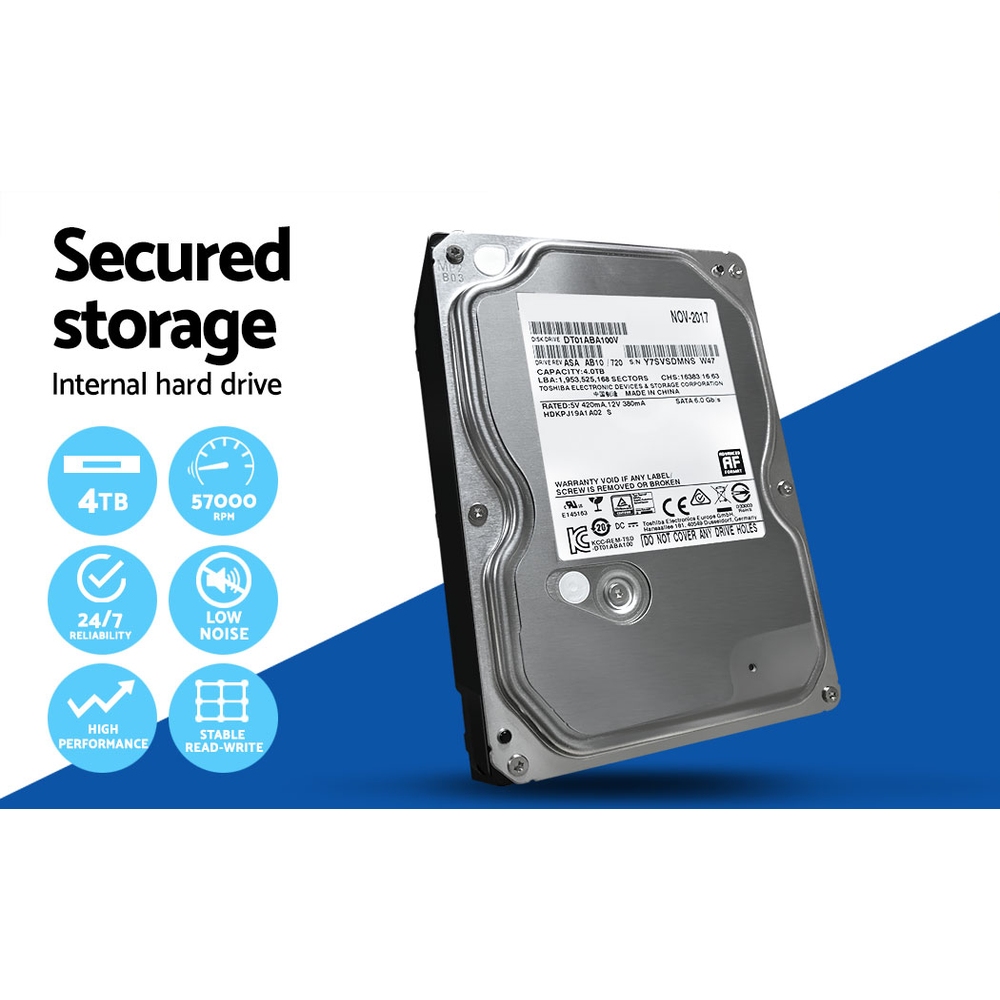

• 4TB Hard Drive × 1
• 18.3m (60ft) 2-in-1 BNC & Power Cable × 4
• 1-to-4 Splitter Cable × 1
• 12V / 2A Power Adapter × 2
• USB Mouse × 1
• User Manual × 1

8 Channel System
• UL-Tech 1080P Camera × 8
• 1080P 8CH DVR × 1
• 4TB Hard Drive × 1
• 18.3m (60ft) 2-in-1 BNC Power Cable × 8
• 1-to-4 Splitter Cable × 2
• 12V / 2A Power Adapter × 3
• USB Mouse × 1
• User Manual × 1
