Description
From a powerful battery to a formidable power station, the GIANTZ Deep Cycle Battery and Battery Box combo delivers reliable energy for a wide range of 12V devices. Each battery features advanced AGM technology for better electrolyte absorption, cyclic stability, and frequent charging without performance loss. Bolt-down terminals provide a secure connection, and high oxygen-recombination efficiency ensures superior deep discharge recovery. The battery box is designed to accommodate the battery and powers devices via a cigarette lighter socket and two USB ports. It can be charged using solar panels or any power source with quick-connect Anderson plugs, and comes pre-wired for easy setup. Perfect for camping, outdoor activities, or backup power, this combo offers convenience, portability, and dependable power wherever you need it.

Features
Battery

• Greater cycle life

• Maximum cycle life: 1400 cycles

• Industry-leading build life

• Higher sulfation resistance

• Longer storage life

• Maintenance-free

• Superior deep discharge recovery

• Better low temperature performance

• High oxygen-recombination efficiency

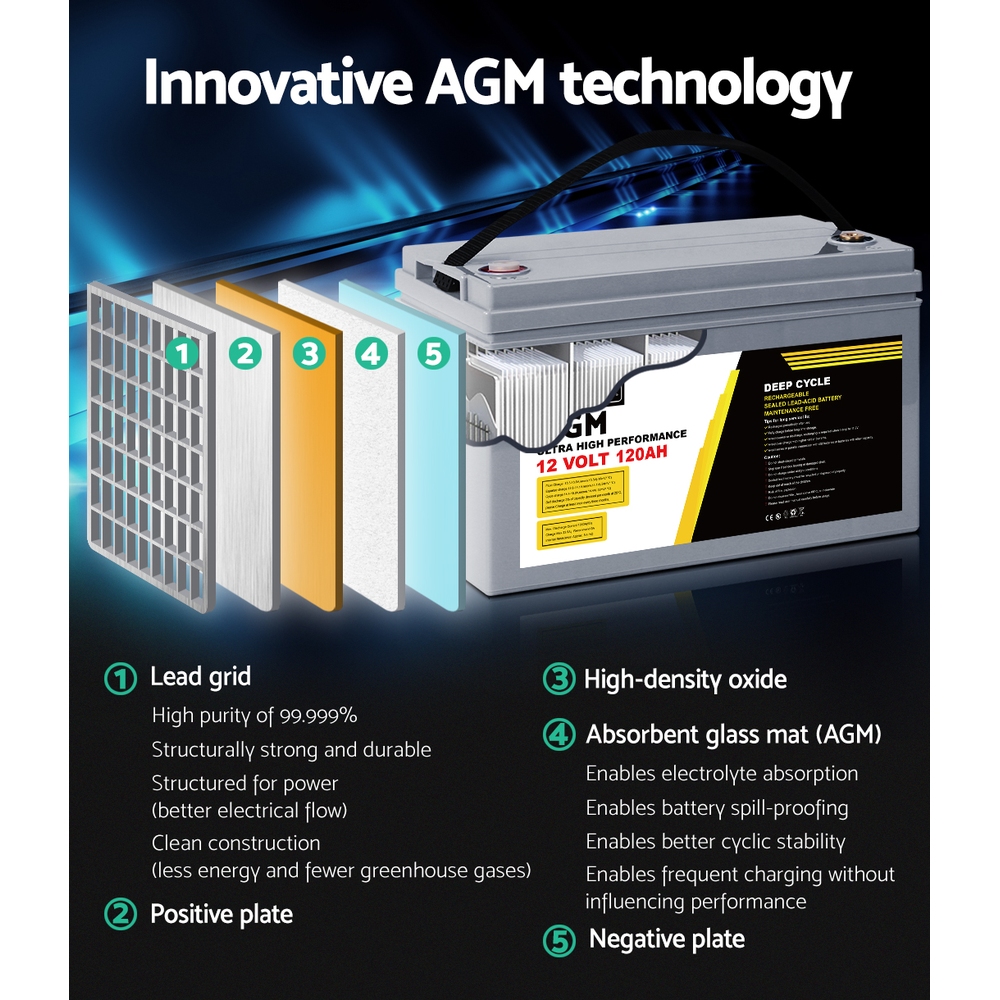

• Advanced AGM technology

• Spill-proof, leak-proof, and non-gassing

• Bolt-down terminals

• Convenient carry handle

Battery Box

• Protective and portable

• User-friendly

• Digital voltage indicator

• 10A resettable circuit breaker

• Two USB ports

• Cigarette lighter socket

• Anderson plugs

• Positive and negative terminals

• Sturdy housing

• Heavy-duty carry handles

• Tie down strap

Specifications
75Ah Battery

• Overall dimensions: 22.9 x 13.8 x 20.8cm

• Approx. weight: 15.5kg

• Container material: ABS

• Terminals: Bolt-down

• Nominal voltage: 12V

• Rated capacity (10-hour rate): 75Ah

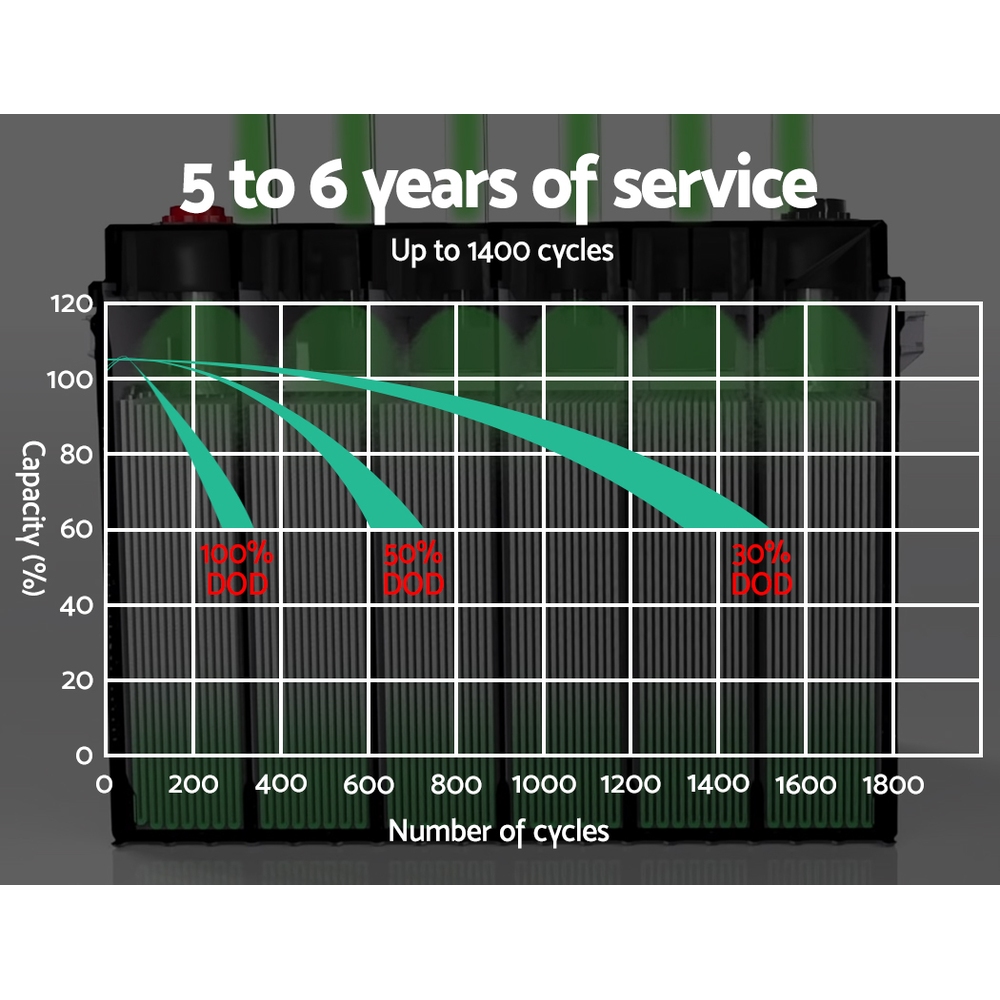

• Maximum cycle life: 1400 cycles (@30% DOD)

• Internal resistance: Approx. 7.6mΩ

• Maximum discharge current: 660A (5s)

• Maximum charge current: 13.8A

• Operating temperature: Discharge -15°C to 50°C | Charge -20°C to 50°C | Storage -20°C to 50°C

• Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%

• Float charge: 13.5–13.8V | Equalise charge: 13.8–14.1V | Cycle charge: 14.4–15.0V

• Self-discharge: 3% per month at 25°C

100Ah Battery

• Overall dimensions: 33 x 17.1 x 21.6cm

• Approx. weight: 25kg

• Rated capacity (10-hour rate): 100Ah

120Ah Battery

• Overall dimensions: 33 x 17.1 x 21.6cm

• Approx. weight: 25kg

• Rated capacity (10-hour rate): 120Ah

• Minimum build life: 7 years

135Ah Battery

• Overall dimensions: 33 x 17.1 x 21.6cm

• Approx. weight: 29.5kg

• Rated capacity (10-hour rate): 135Ah

140Ah Battery

• Overall dimensions: 33 x 17.1 x 21.6cm

• Approx. weight: 29.5kg

• Rated capacity (10-hour rate): 140Ah

Battery Box

• Overall dimensions: 43.5 x 25.5 x 30cm

• Inner dimensions: 36 x 20.5 x 24cm

Package Content

• 1 x Deep cycle battery

• 1 x Battery box

• 1 x User instructions

Notes

• Please charge the battery upon receipt, even if not used immediately.

• Maintenance-free batteries require periodic recharging after use.

• Charge every 3 months if not in use to prevent over-discharging.

• AGM batteries have a longer cycle life when partially discharged and recharged rather than fully drained.

• The battery handle may be black or white randomly.
