Description
The Solar-Powered Automatic Gate Opener offers secure, convenient, and eco-friendly control for heavy gates. Designed to handle gates up to 600kg and 10 meters long, it features gentle start and stop operation to protect your gate and automatic obstruction detection for enhanced safety. The system includes an emergency release key for manual operation during power failures and a programmable auto-close feature adjustable from 0–99 seconds. Its weather and dust resistant control box ensures reliable performance, and it comes with two programmable remote controls. Compatible with steel, wood, and vinyl gates in panel, tube, or chain-link styles. It is recommended to connect the opener to the mains with a 10W solar kit as backup, while 20W or 40W solar kits can be used as main power.

Features

• Solar-powered gate opener

• Handles gates up to 600kg and 10m long

• Optional push-to-open bracket for outward gate opening

• Gentle start and stop operation

• Automatically stops or reverses when obstruction is detected

• Emergency release key for power failures

• Programmable auto-close feature (adjustable between 0–99 seconds)

• Weather and dust resistant control box

• Comes with 2 programmable remote controls

• Versatile for steel, wood, and vinyl gates in panel, tube, or chain-link styles

Specifications

• Motor voltage: 24V DC

• Motor power: 50W per arm

• Maximum gate weight: 300kg per arm

• Maximum gate length: 10m

• Actuator speed: 20mm/s

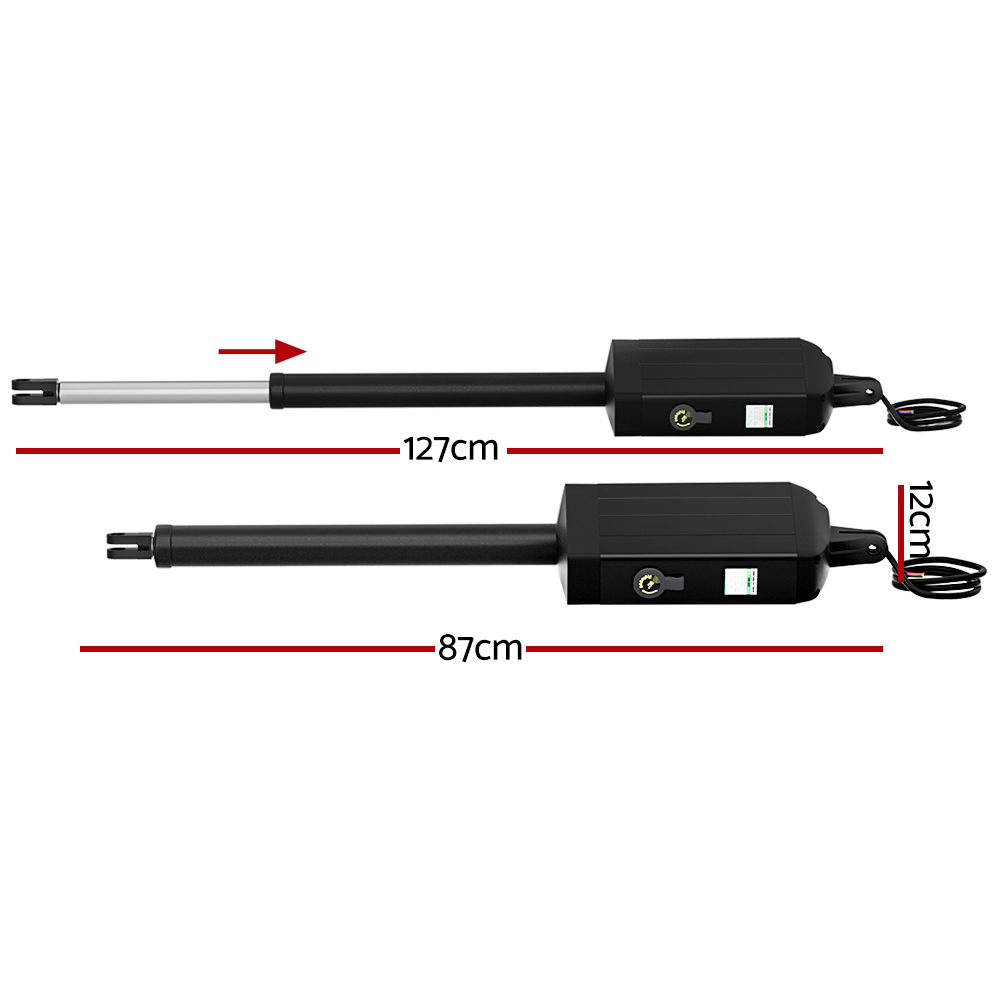

• Actuator travel: 385mm

• Operating temperature: -22℃ to +55℃

• Protection class: IP44

• Remote control: 3

• Remote operating range: 30m

• Remote control battery: Alkaline zinc manganese battery 12V 27A

• Assembly required: Yes

• Number of packages: 2

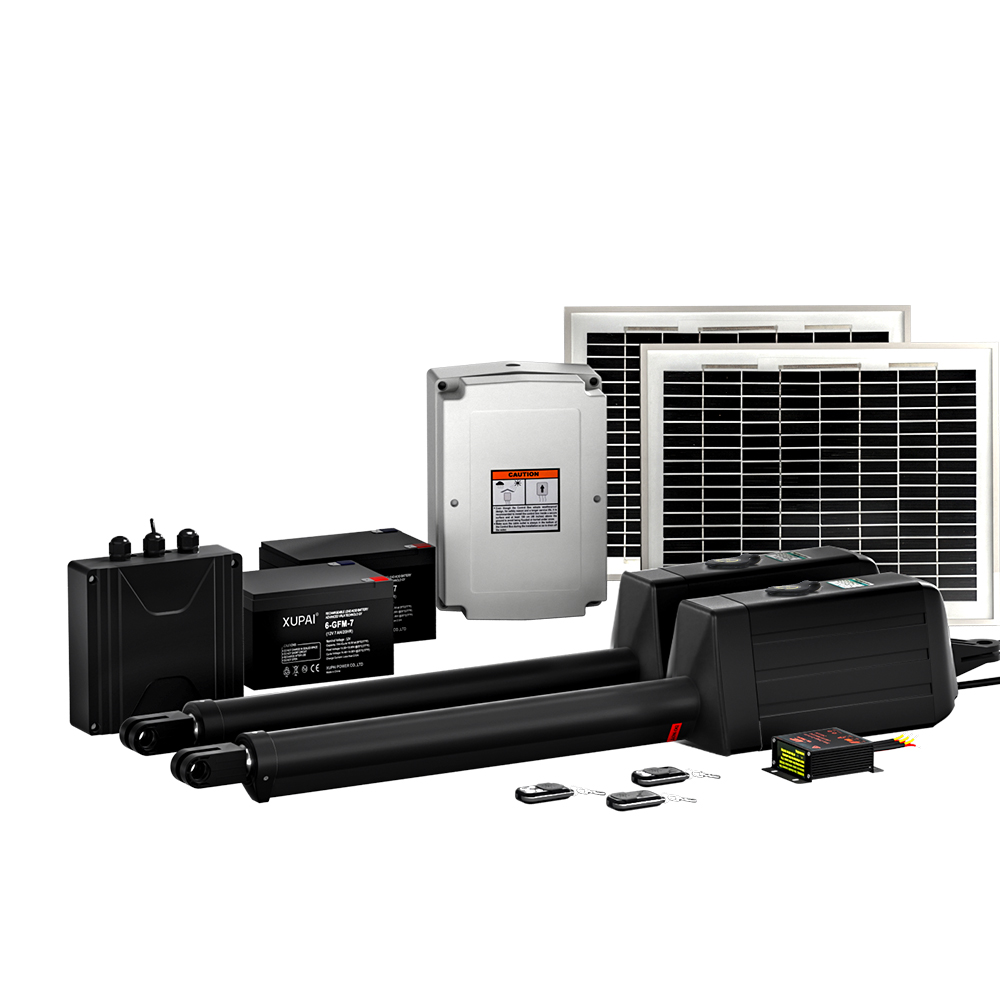

Package Content

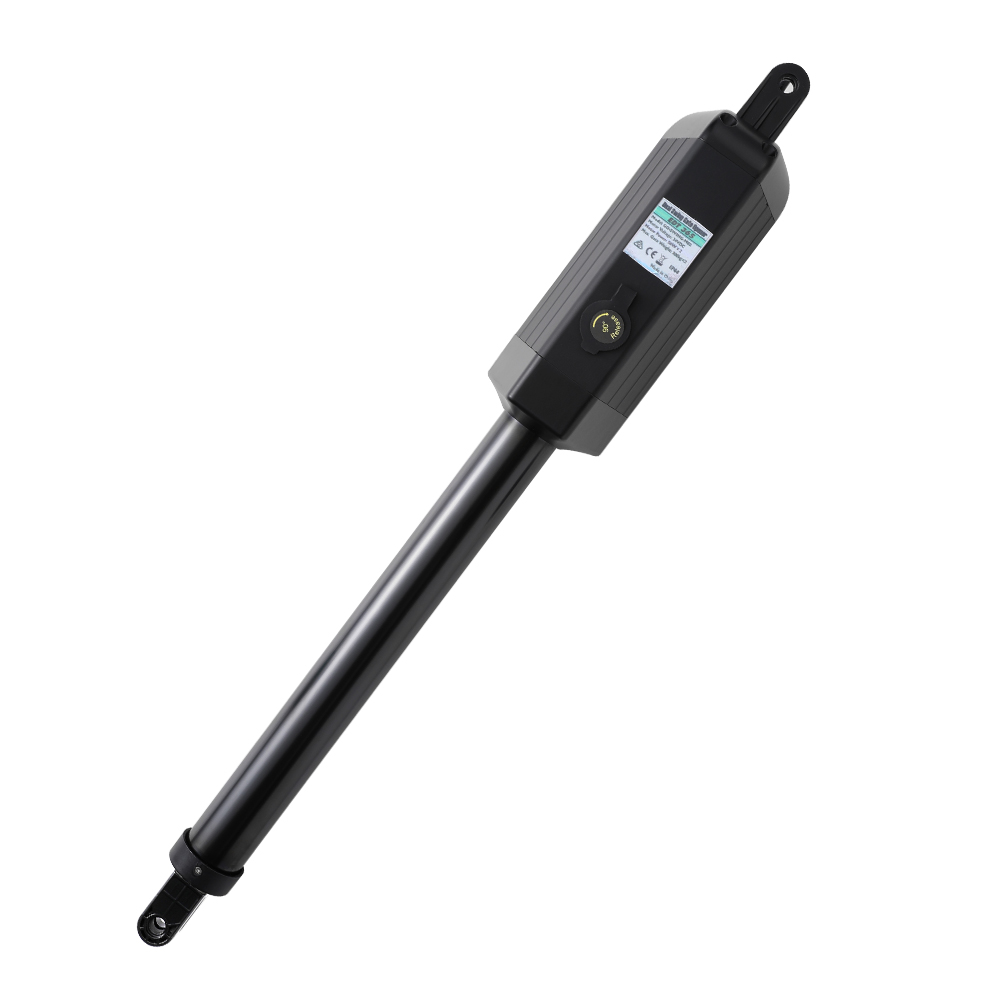

• Lockmaster Gate Opener Arm x2

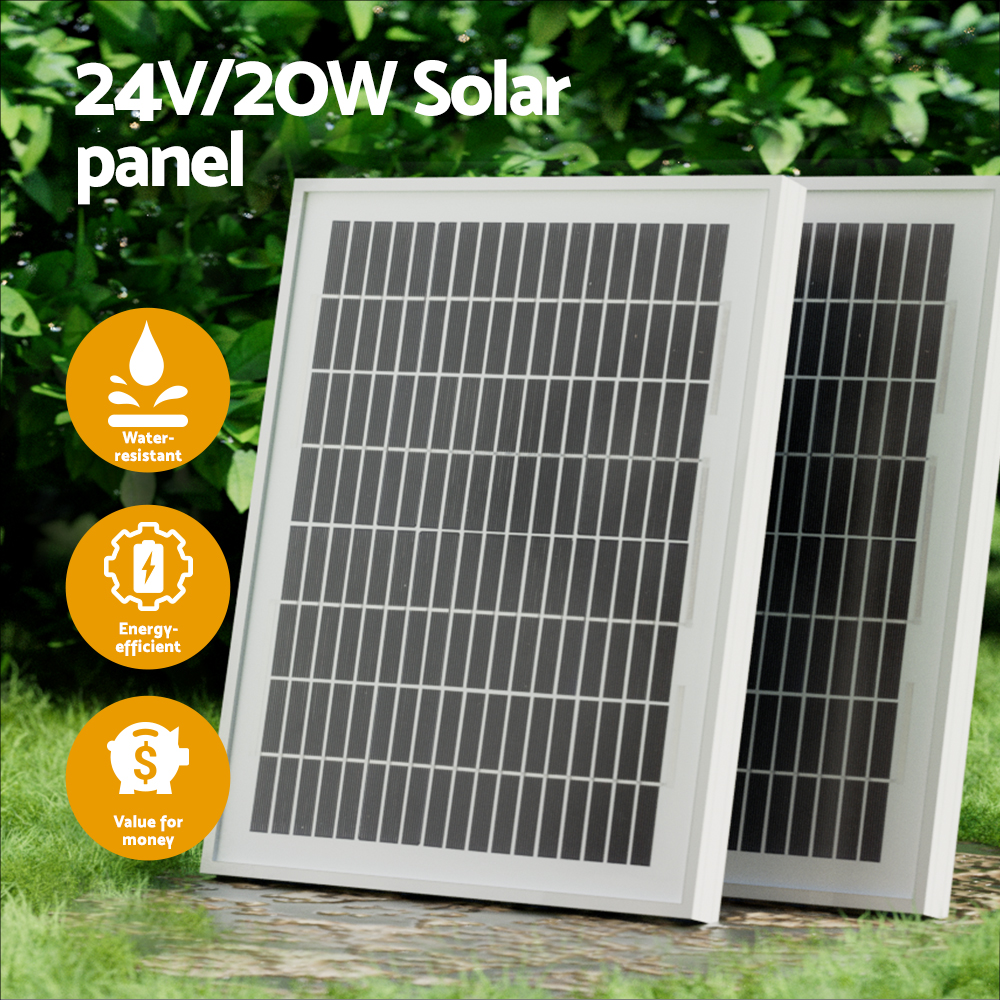

• Solar Panel x1 (10W or 20W depending on package)

• Remote control x3

• Installation Accessories x1

• User Manual x1

• Control Box x1
